Place of Origin:
China
Brand Name:
OEM
Certification:
ISO9001
Model Number:
HDPE Geocell
Contact Us
It is mainly used in foundation reinforcement, soft foundation treatment, steep slope protection, landslide prevention and hybrid retaining wall subject to load and weight; especially suitable for weathered mountain forests, deserts and swamps.
1.Load support: Solve unacceptable road, parking and yard surface problems.

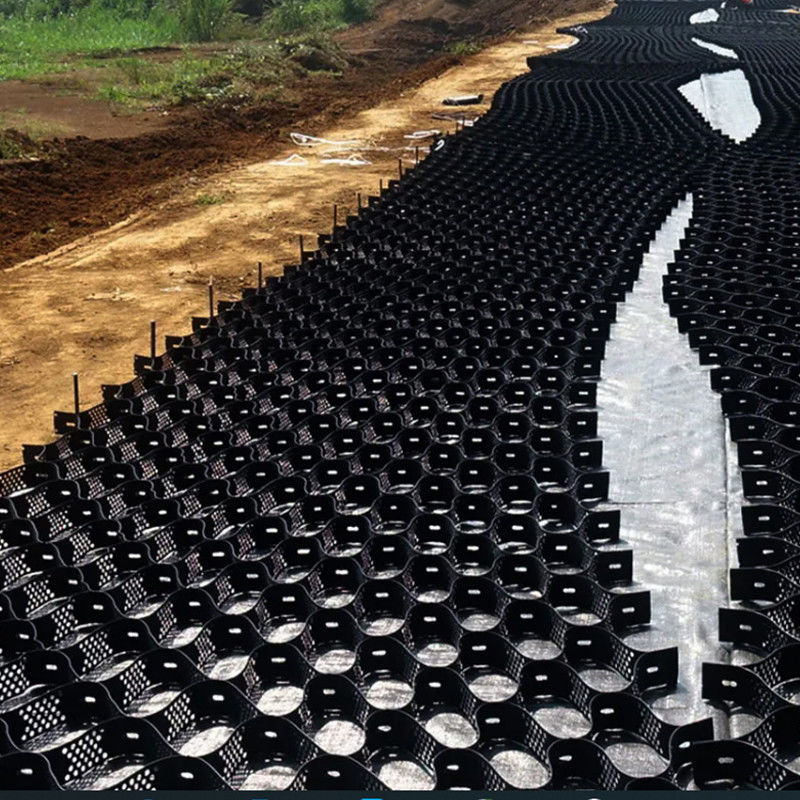

2.Slope protection: Create a stable environment forlong-term sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.

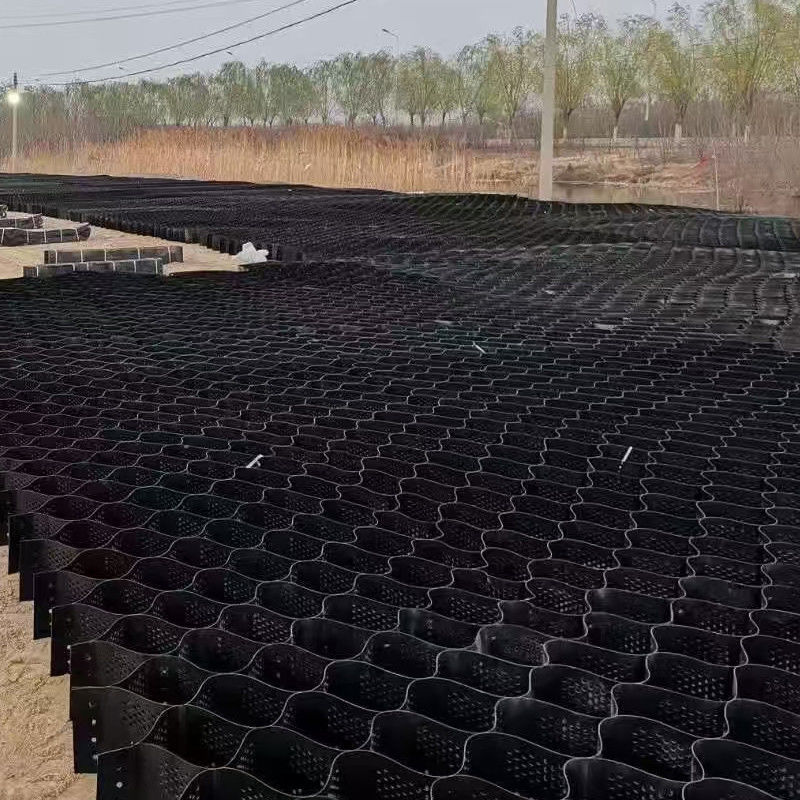

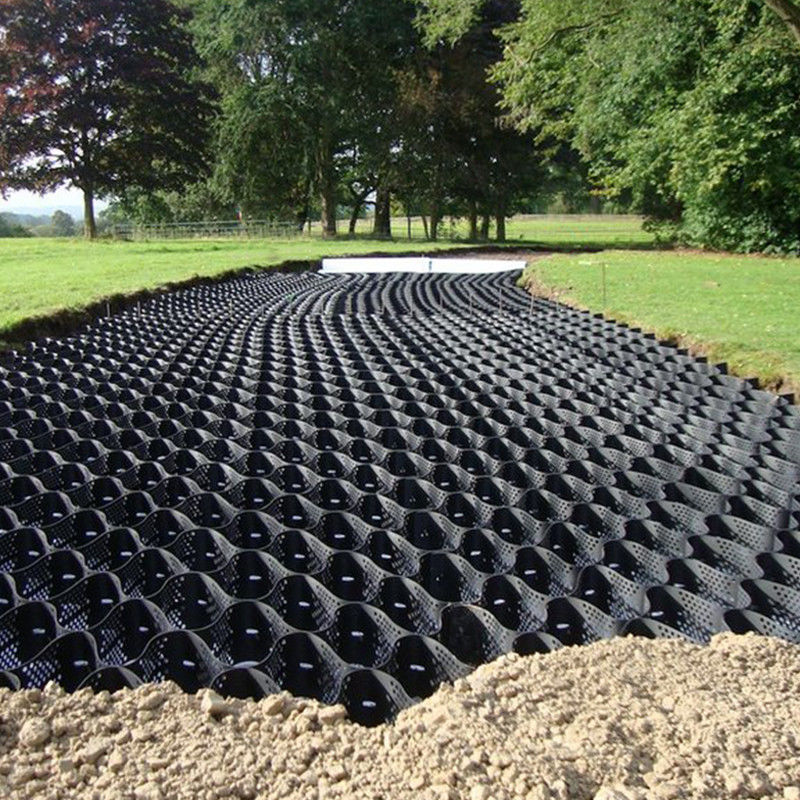

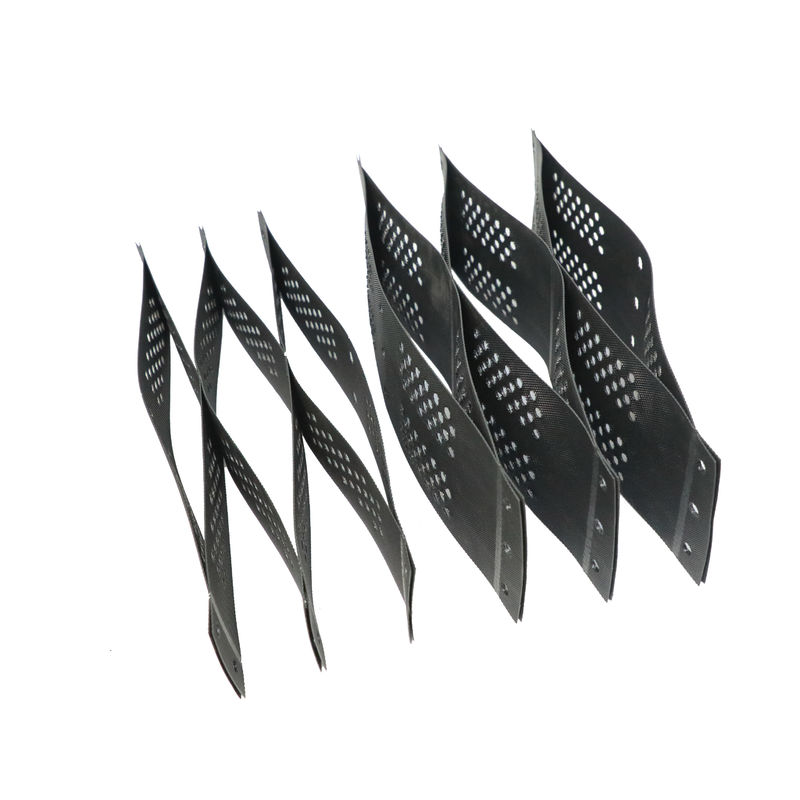

HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
HDPE Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and storm water control in channels.
HDPE Geocell Features

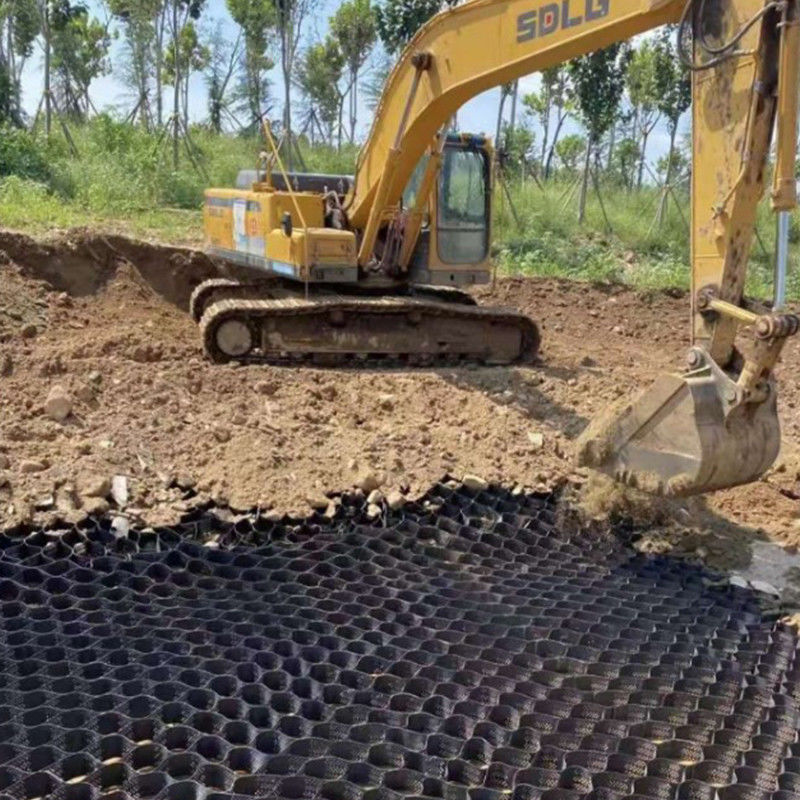

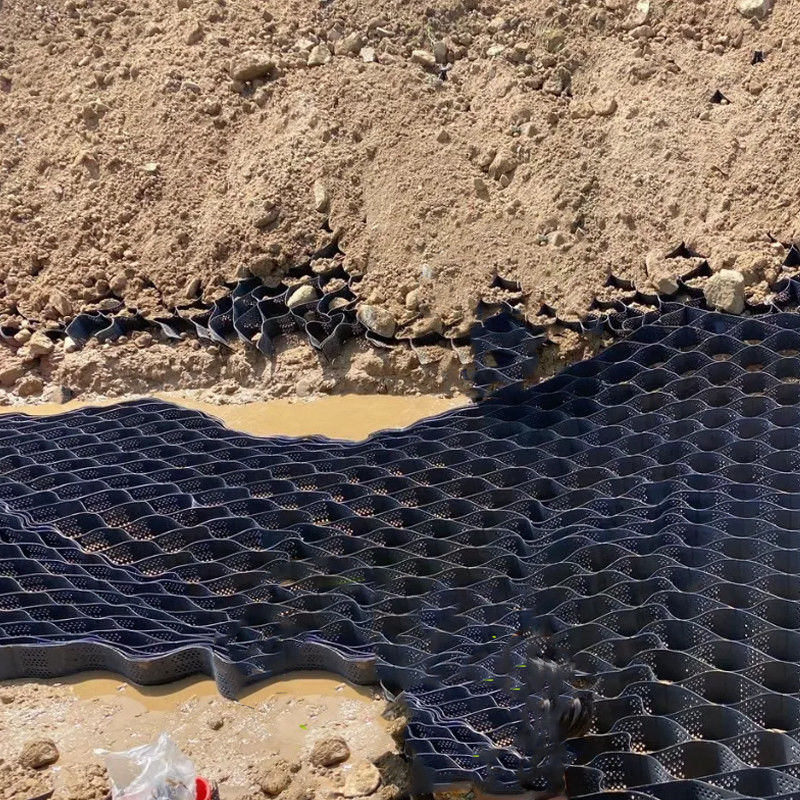

1. It is flexible and can be folded during transportation. It can be stretched into a mesh during construction and filled with loose materials such as soil, gravel, concrete, etc. to form a structure with strong lateral restrictions and high rigidity.
2. It is light, wear-resistant, chemically stable, resistant to light and oxygen aging, acid and alkali, and suitable for different soils and deserts.
3. It has high lateral restrictions and anti-slip, anti-deformation, and effectively enhances the bearing capacity of the roadbed and disperses the load.
4. Changing the geometric dimensions such as the height and welding distance of the geocell can meet different engineering needs.
5. It is flexible and has a small transportation volume; it is easy to connect and has a fast construction speed.
Product Technical Parameters G/B Standard:
|
Product Type
|
Smooth and Not Perforated
|
Smooth and Perforated
|
Textured and Not Perforated
|
Textured and Perforated
|
|
Height (mm)
|
50≤H≤250
|
50≤H≤250
|
50≤H≤250
|
50≤H≤250
|
|
Welding Distance(mm)
|
330≤A≤1000
|
330≤A≤1000
|
330≤A≤1000
|
330≤A≤1000
|
|
Thickness (mm)
|
1.0- 1.2
|
1.0- 1.2
|
1.4- 1.7
|
1.4- 1.7
|
|
Seam Peel Strength of Welding Point (N/cm)
|
≥100
|
≥100
|
≥100
|
≥100
|
|
Tensile Strength of Connection of Cells (N/cm)
|
≥120
|
≥120
|
≥120
|
≥120
|
|
Tensile Strength at Yield of Each Sheet (N/cm)
|
≥200
|
≥200
|
≥200
|
≥200
|
| Material Properties | Unit | Test Method | |||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
| Seam Efficiency | % | 100 | GRI-GS13 | ||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 2.44x6.1 and etc. | |||||
HDPE Geocell mainly used in foundation reinforcement, soft foundation treatment, steep slope protection, landslide prevention and hybrid retaining wall subject to load and weight; especially suitable for weathered mountain forests, deserts and swamps.
1.Load support: Solve unacceptable road, parking and yard surface problems.
2.Slope protection: Create a stable environment forlong-term sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.
3. why should you buy from us not from other suppliers?
More than 20 years of production experience
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Professional geosynthetics manufacturer
