Good Creep Performance Of HDPE Plastic Uniaxial Geogrid For Retaining Walls

Product Details

Application:

Soil Stabilization, Erosion Control, Reinforcement, Etc.

Advantage:

High Strength /Long Life Service Geogrid

Geogrid:

PET PP Geogrid

Hs Code:

3926909090

Length Roll:

50m-100m

Usage:

Road Construction And Soft Soil Reinforcement

Product Name:

Uniaxial Plastic Geogrid

Tensile Strength:

25Kn/m--300Kn/m

Geogrid Soil Reinforcement Fiberglass Uniaxial Geogrid for Retaining Wallt

Get Best Price

Fiberglass Geogrid Gravel Grid Asphalt Reinforcement

Get Best Price

Self-adhesive Biaxial 100kn Fiberglass Geogrid For Pavement

Get Best Price

Civil Engineering Glass Fiber Mesh Basalt Reinforcing

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Good Creep Performance of HDPE Plastic Uniaxial Geogrid for Retaining Walls

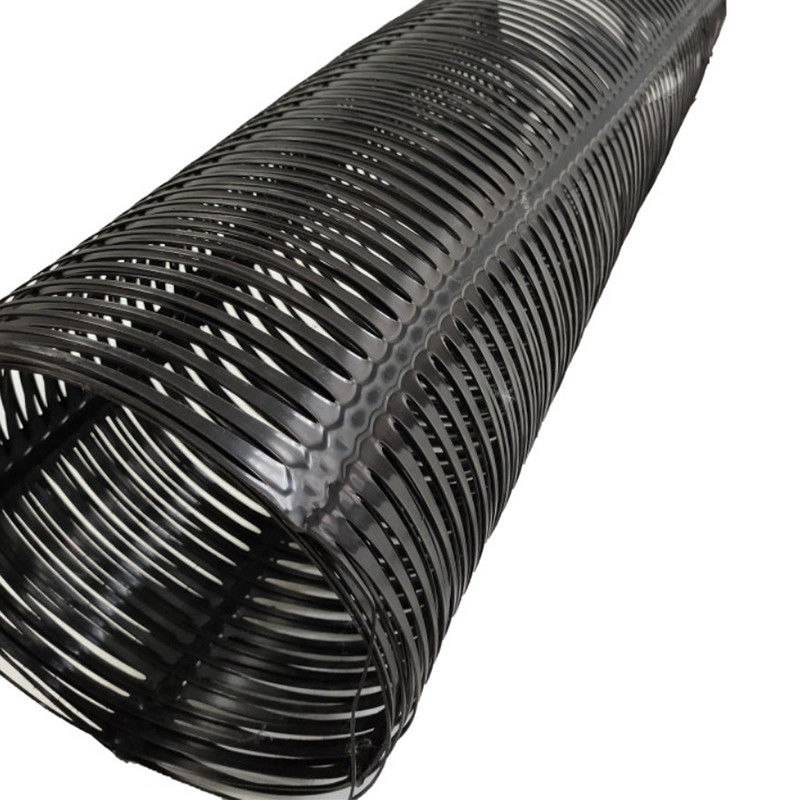

HDPE Plastic Uniaxial Geogrid

Uniaxially stretched geogrid is a kind of high-strength geotextile, which is mainly made of high molecular polymer, added with certain anti ultraviolet and anti-aging additives, re oriented and arranged in a linear state through uniaxial stretching, extruded and pressed into thin plates, punched into regular pore networks, and then stretched longitudinally.

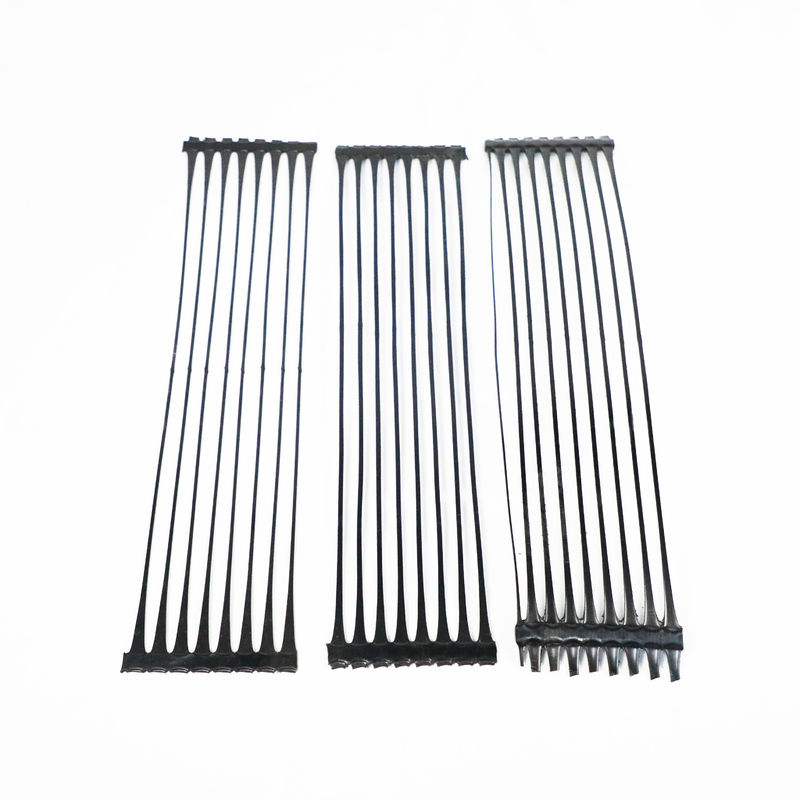

HDPE Plastic Uniaxial Geogrid

In this process, the polymer is oriented in a linear state and forms a uniformly distributed, high node strength, long elliptical network overall structure. This structure has a relatively high tensile strength and modulus, reaching 100-200Mpa in tensile strength, which is close to the level of low-carbon steel and greatly superior to traditional or existing reinforced materials. It
has a high early tensile strength and modulus (with an elongation of 2-5%) that exceeds international standards. A chain system that provides ideal force bearing and diffusion for the soil.

uniaxial geogrid (PP)Technical Parameter (GB standard)
Item	Specification
Type	TGDG 35	TGDG 50	TGDG 80	TGDG110	TGDG 120	TGDG150	TGD200	TGDG260	TGDG 300
Tensile Strength≥(KN/M)	35	50	80	110	120	150	200	260	300
Maximum elongation≤(%)	10
Tensile strength at 2% elongation≥(KN/M)	10	12	26	32	36	42	56	94	108
Tensile strength at 5% elongation≥(KN/M)	22	28	48	64	72	84	112	185	213

uniaxial geogrid(PE)Technical Parameter (GB standard)
Item	Specification
Type	TGDG 50	TGDG 80	TGDG100	TGDG110	TGDG120	TGDG 150	TGDG 170	TGDG 200	TGDG 220
Tensile Strength≥(KN/M)	50	80	100	110	120	150	170	200	220
Maximum elongation≤(%)	10
Tensile strength at 2% elongation≥(KN/M)	12	21	26	29	38	41	52.5	60	64
Tensile strength at 5% elongation≥(KN/M)	23	40	50	55	75.5	81	103	110	127

HDPE Plastic Uniaxial Geogrid Product Application and Benefits:
Uniaxial geogris is kind of high strength geosynthetic. It has extensive applications in dyke, tunnel, pier, highway, railway and building.
applications

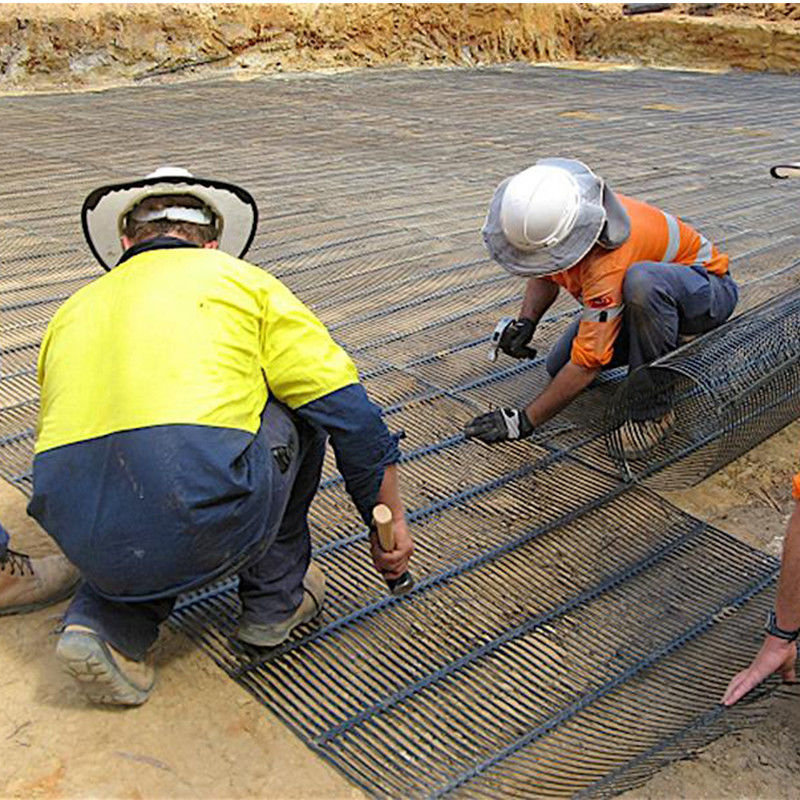

HDPE Plastic Uniaxial Geogrid Application:

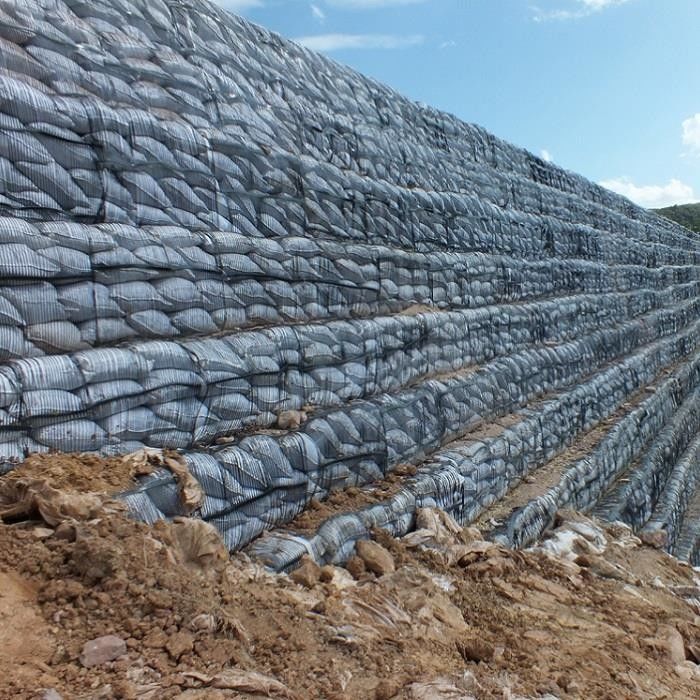

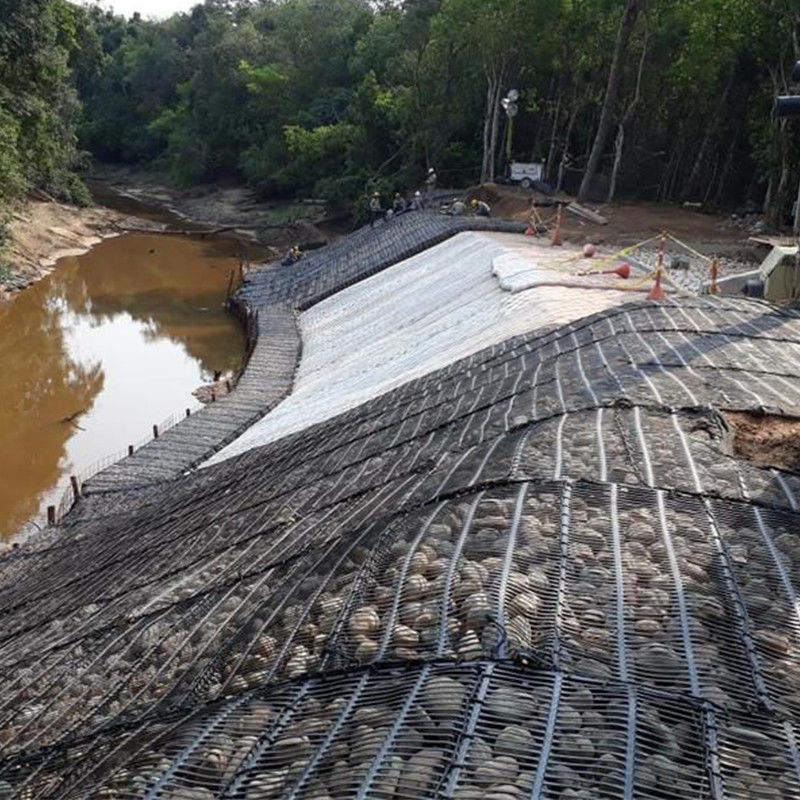

Strengthening embankment slopes and retaining walls: Strengthening embankment slopes or retaining walls with geogrids can reduce land occupation by half, extend service life, and reduce costs by 20% to 50%.

For landfill sites: The combination of geogrids and other geosynthetic materials can effectively solve the problems of uneven foundation settlement and uneven emissions of derived gases, and maximize the utilization of landfill storage capacity.

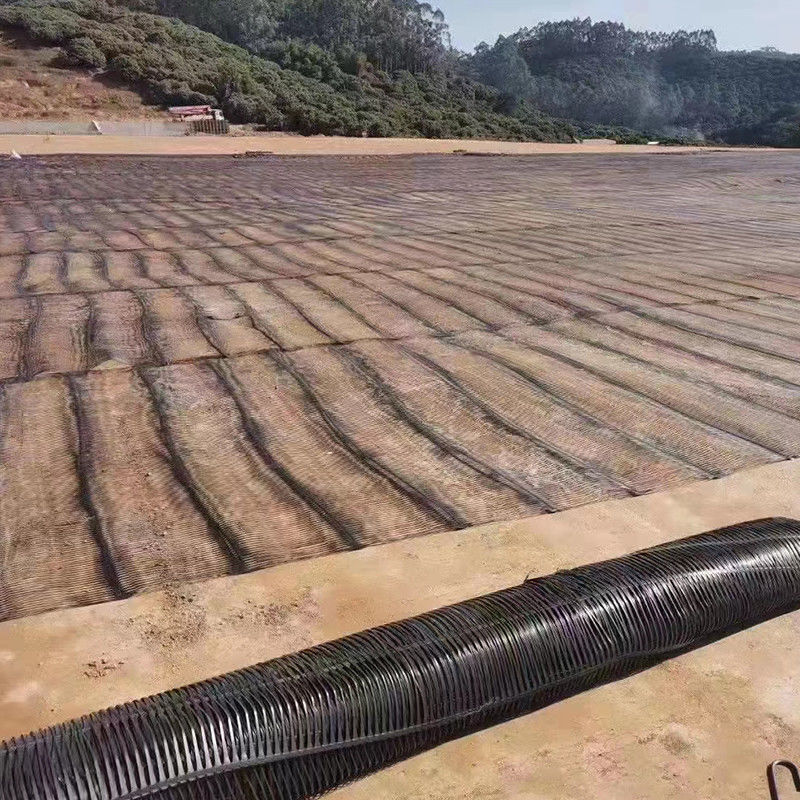

Used to reinforce weak foundations: Geogrids can quickly improve the bearing capacity of the foundation and control the development of settlement. The lateral constraint of the roadbed can effectively disperse the load onto a wider roadbed, thereby reducing the thickness of the roadbed and engineering. Reduce costs, shorten construction period, and extend service life.

Unidirectional plastic geogrid is used for reinforcement of asphalt or cement pavement: geogrid is laid at the bottom of asphalt or cement pavement, which can reduce the depth of ruts, extend the fatigue life of the pavement, and also reduce the thickness of asphalt or cement pavement to save costs.

1.What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.

What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .

What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration

Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers

Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation. Building - Parkings,Roofing,Soundproofing

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
Angela:86-18095658976

Email:angela@zhongloo.com
