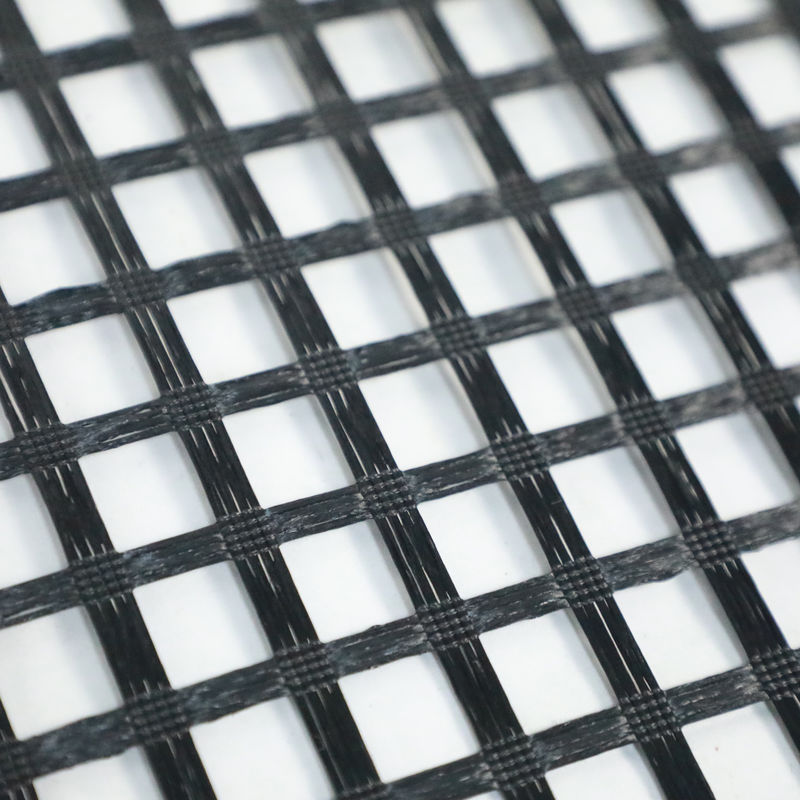

Fiberglass Geogrid Gravel Grid Asphalt Reinforcement
Data Sheet
| SPECIFICATION | EGA3030 | EGA5050 | EGA8080 | EGA100100 | EGA120120 | EGA150150 | EGA200200 | |
| Ultimate Strength (KN/M) |
MD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 |
| CMD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 | |
| elongation(%) | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Grid Size, mm | 12.5-40.00 | |||||||
| Width | 6 Meter Maximum | |||||||
Features:

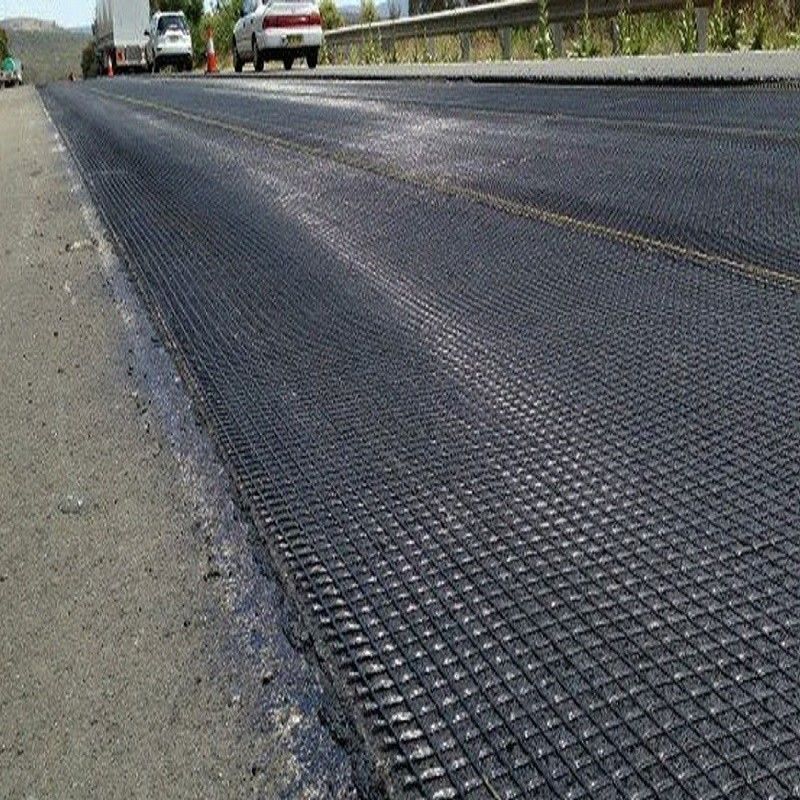

The product has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance, long life and so on. In engineering fields such as slope protection, road and bridge pavement enhancement treatment, it can strengthen and reinforce the pavement, prevent pavement rutting fatigue cracks, hot-cold expansion cracks and reflection cracks below, and can disperse the bearing stress of the pavement, prolong the service life of the pavement, high Low tensile strength, low elongation, no long-term creep, good physical and chemical stability, good thermal stability, anti-fatigue cracking, high temperature rutting resistance, low temperature shrinkage crack resistance, delay and reduce reflection cracks.
