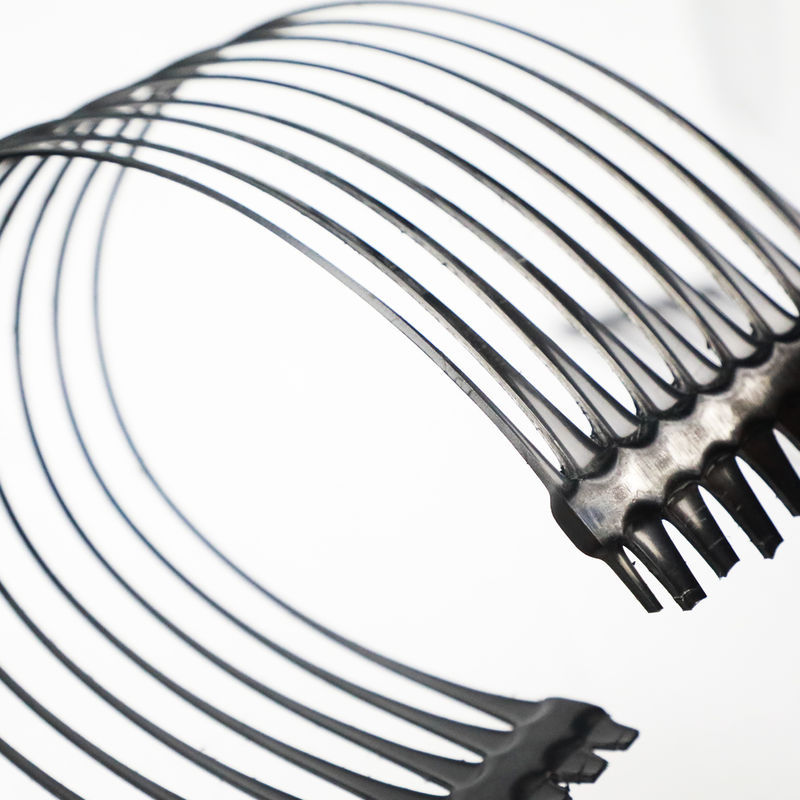

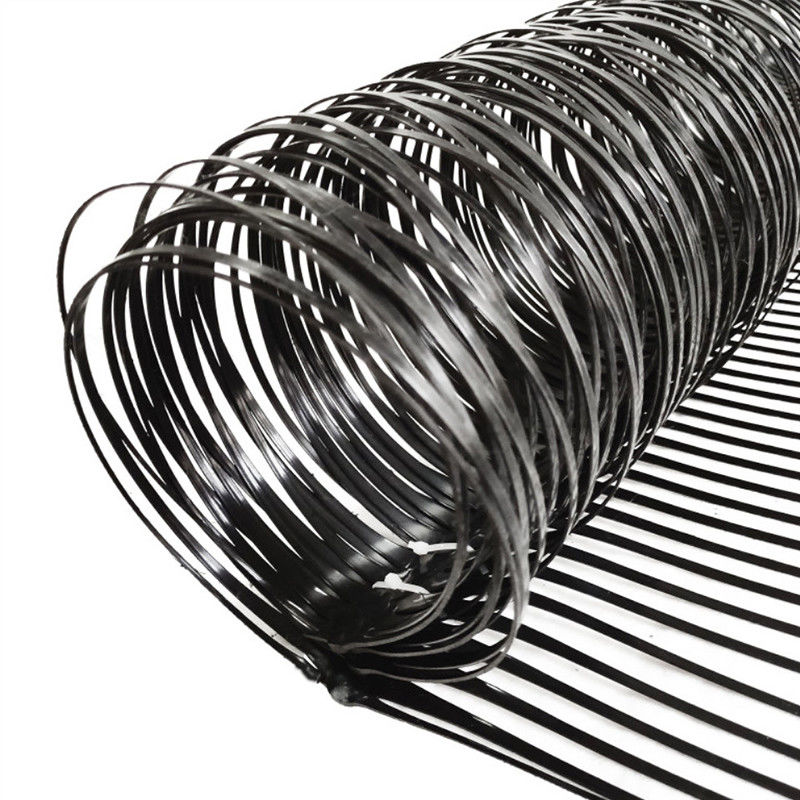

HDPE Uniaxial Plastic Geogrid for Soil Foundation Slope Protection
HDPE Uniaxial Geogrid is manufactured from High Density Polyethylene. It is produced through the process of extruding, punching, heating and stretching.
Uniaxial Geogrid is made by polypropylene(PP) as the raw material,Uniaxial Geogrid,It is produced through the process of extruding, punching, heating, longitudinal and transverse stretching.Uniaxial Geogrid can be used to enhancement of permanent bearable soft including highway.
•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
|
uniaxial geogrid(PP)Technical Parameter (GB standard)
|
|||||||||
|
Item
|
Specification
|
||||||||
|
Uniaxial Geogrid Type
|
TGDG35
|
TGDG50 |
TGDG80 |
TGDG110 |
TGDG120 |
TGDG150 |
TGD200 |
TGDG260 |
TGDG300 |
|
Uniaxial Geogrid Tensile Strength≥(KN/M)
|
35
|
50
|
80
|
110
|
120
|
150
|
200
|
260
|
300
|
|
Uniaxial Geogrid Maximum elongation≤(%)
|
10
|
||||||||
|
Uniaxial Geogrid Tensile strength at 2% elongation≥(KN/M)
|
10
|
12
|
26
|
32
|
36
|
42
|
56
|
94
|
108
|
|
Uniaxial Geogrid Tensile strength at 5% elongation≥(KN/M)
|
22
|
28
|
48
|
64
|
72
|
84
|
112
|
185
|
213
|
1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;

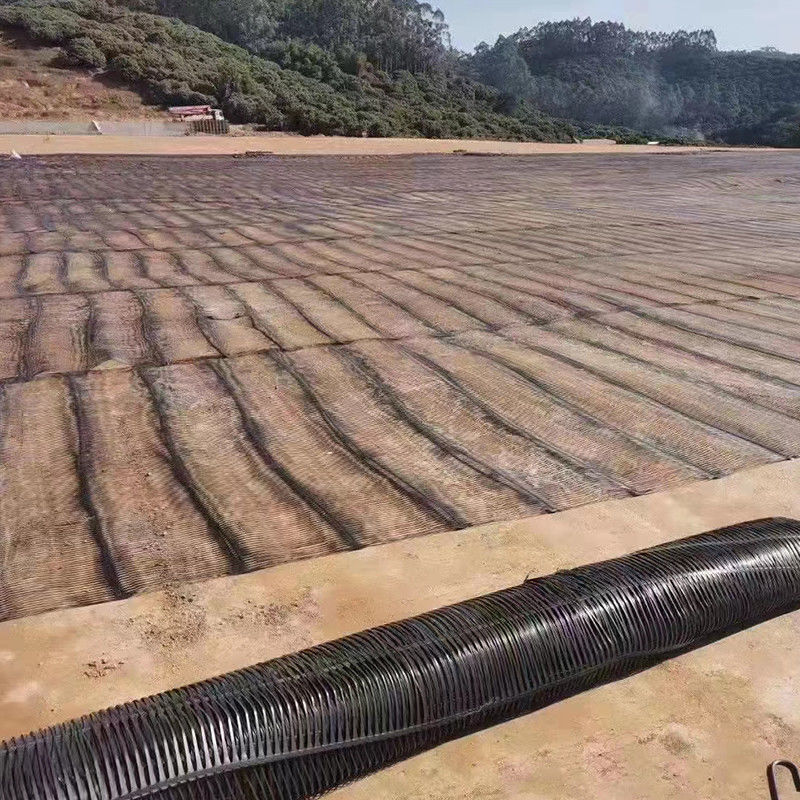

2. Reinforcement of road foundations;

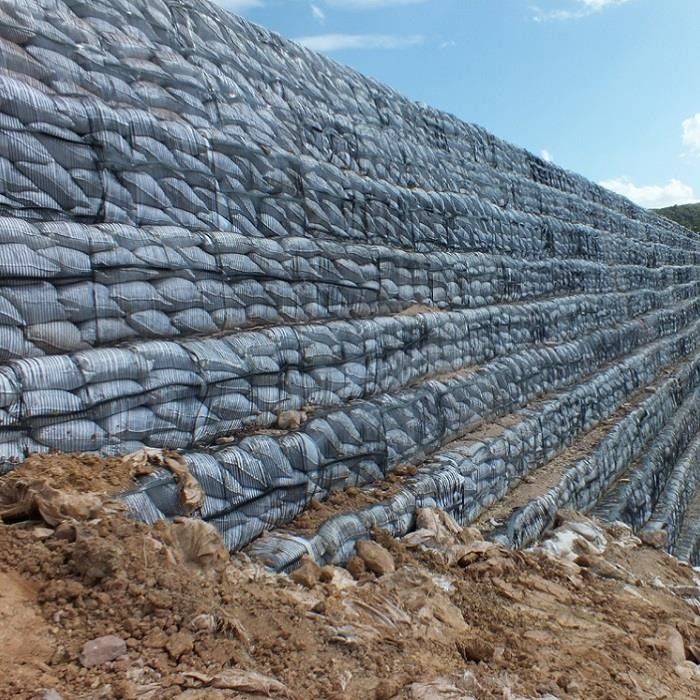

3. Retaining walls;

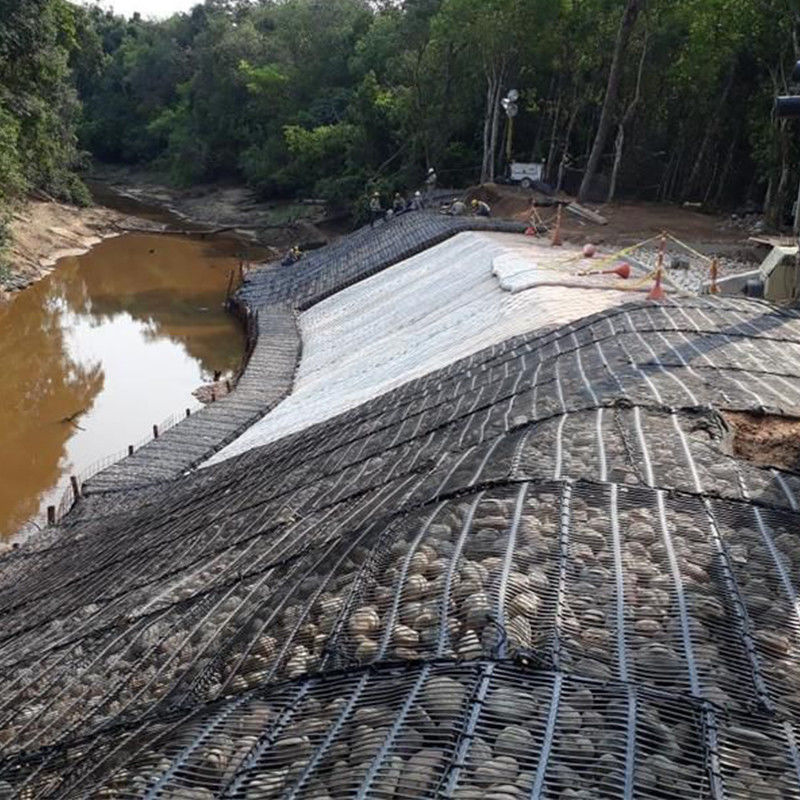

4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
FAQ
1.What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, Uniaxial Geogrid,geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
