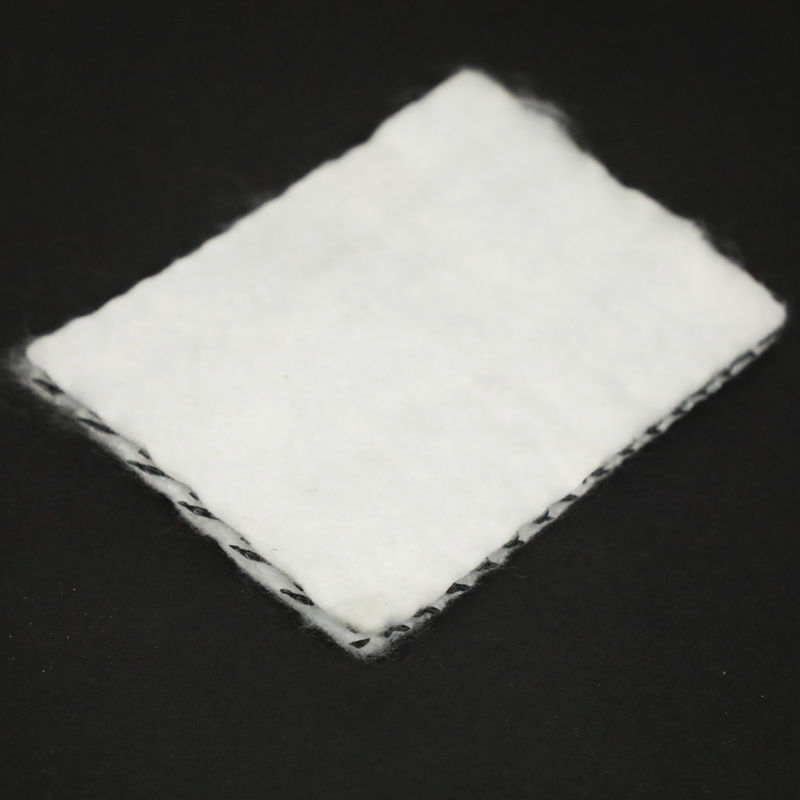

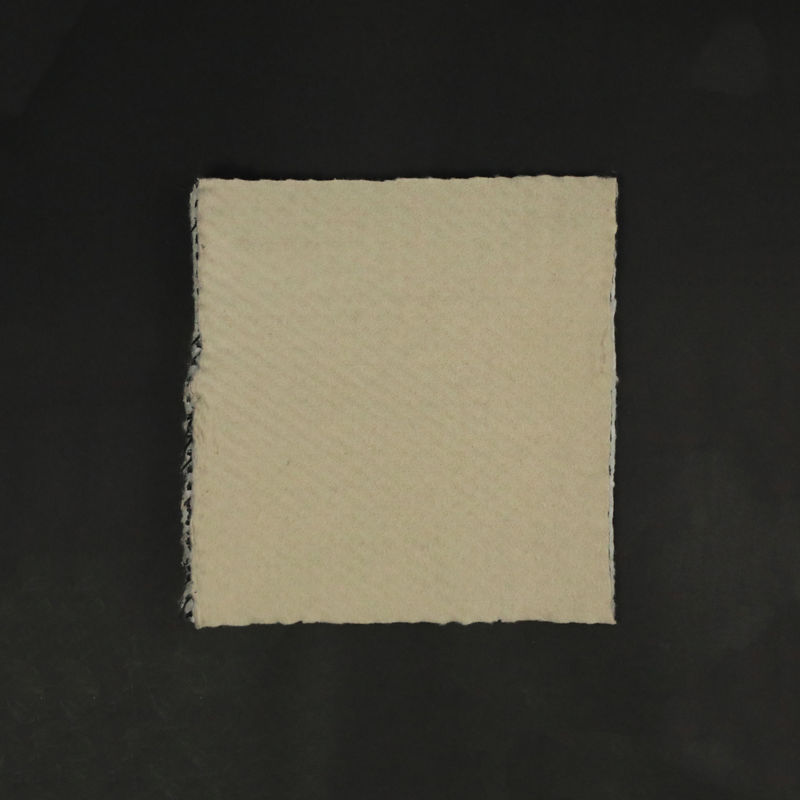

HDPE 3D Composite Drainage Geonet
Product introduction
Tr-dimensiton composite geonet for drainage is made of a unique tri-dimension geonet adhibited geotextile on both sides. It has the property of geotextile (filtration function) and geonet (drainage and protection) and provide a function system "filtration-drainage-protection". The core of net with its unique tri-dimension structure can bear higher compressing load in construction and remaiin the certain thickness, provide good water conductivity.
Technical data sheet
| Property | Unit | NLDG 50/D200 |
NLDG 63/D200 |
NLDG 70/D200 |
NLDG 80/D200 |
NLDG 90/D200 |
Test Standard |
| Drainage Net Specification | |||||||
| Hydraulic conductivity (MD) | m2/s | 2.8×10-3 | 2.8×10-3 | 3.2×10-3 | 4.0×10-3 | 5 x10-3 | ASTM D4716 |
| Puncture Resistance | KN/m | 0.17 | 0.17 | 0.17 | 0.17 | 0.17 | ASTM D7005 |
| Core Material Geonet Specification | |||||||
| Thickness | mm | 5 | 6.3 | 7 | 8 | 9 | ASTM D5199 |
| Density | g/cm-3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ASTM D1505 |
| Carbon Black Content | % | 2 | 2 | 2 | 2 | 2 | ASTM D1603 |
| Tensile strength (MD) | kN/m | 8 | 10 | 12 | 14 | 16 | ASTM D7199 |
| Hydraulic conductivity (MD) | m2/s | 6 | 8 | 10 | 12 | 14 | ASTM D4716 |
| Geotextile Specification | |||||||
| Unit weight | g/m2 | 200 | 200 | 200 | 200 | 200 | / |
| Geotextile type | Continuous filament non-woven geotextile | ||||||
Features:
Net drainage geocomposites are manufactured using a unique geotextile filter developed specifically for use in drainage geocomposites for its high tensile modulus and ability to prevent soil ingress into the void space of the drainage core.
The drainage cores are manufactured from HDPE nets which have been engineered to have good flow under high loading.
