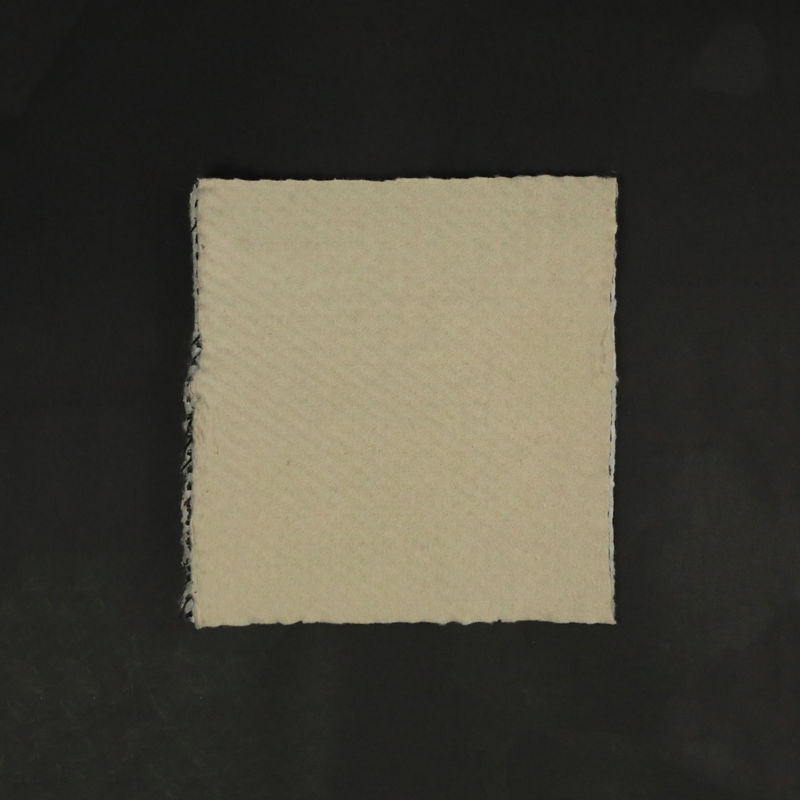

Composite Geonet For Drainage For Landfill Park
Product introduction

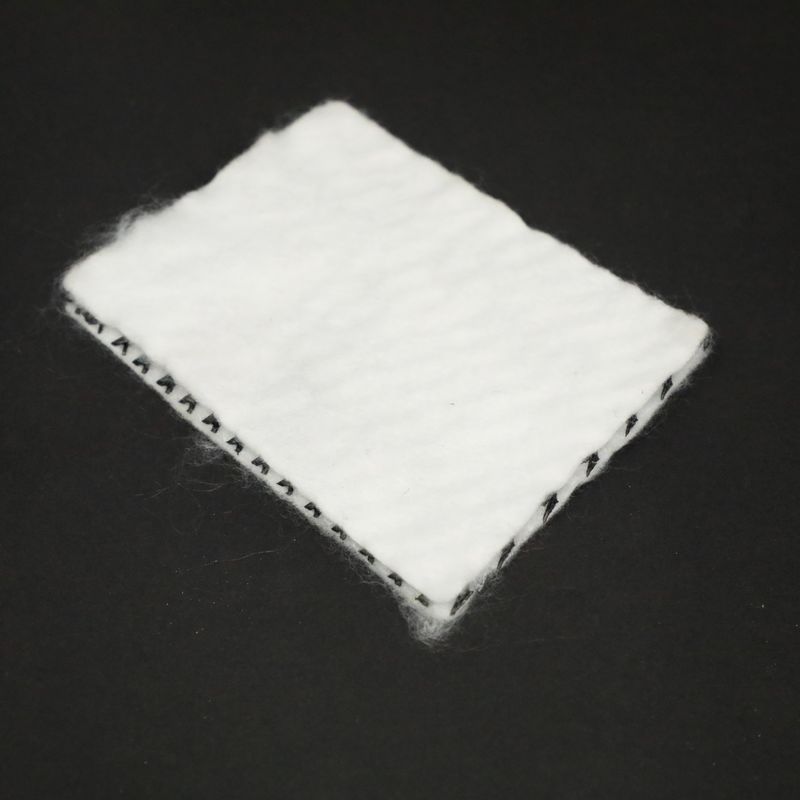

Tr-dimensiton composite geonet for drainage is made of a unique tri-dimension geonet adhibited geotextile on both sides. It has the property of geotextile (filtration function) and geonet (drainage and protection) and provide a function system "filtration-drainage-protection". The core of net with its unique tri-dimension structure can bear higher compressing load in construction and remaiin the certain thickness, provide good water conductivity.
Technical data sheet
| Property | Unit | NLDG 50/D200 |
NLDG 63/D200 |
NLDG 70/D200 |
NLDG 80/D200 |
NLDG 90/D200 |
Test Standard |
| Drainage Net Specification | |||||||
| Hydraulic conductivity (MD) | m2/s | 2.8×10-3 | 2.8×10-3 | 3.2×10-3 | 4.0×10-3 | 5 x10-3 | ASTM D4716 |
| Puncture Resistance | KN/m | 0.17 | 0.17 | 0.17 | 0.17 | 0.17 | ASTM D7005 |
| Core Material Geonet Specification | |||||||
| Thickness | mm | 5 | 6.3 | 7 | 8 | 9 | ASTM D5199 |
| Density | g/cm-3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ASTM D1505 |
| Carbon Black Content | % | 2 | 2 | 2 | 2 | 2 | ASTM D1603 |
| Tensile strength (MD) | kN/m | 8 | 10 | 12 | 14 | 16 | ASTM D7199 |
| Hydraulic conductivity (MD) | m2/s | 6 | 8 | 10 | 12 | 14 | ASTM D4716 |
| Geotextile Specification | |||||||
| Unit weight | g/m2 | 200 | 200 | 200 | 200 | 200 | / |
| Geotextile type | Continuous filament non-woven geotextile | ||||||
Application
1,Landfill drainage;
2, Roadbed and road drainage;
3,Railway drainage, tunnel drainage, underground structure drainage.
4,The retaining back wall drainage,
5,gardens and sports grounds drainage.
