Name: 6m Width Fiberglass Plastic Geogrid For Soil Reinforcement
Brand: Anhui Zhonglu Engineering Materials Co., Ltd.
SKU: Fiberglass geogrid
Price: Negotiable USD
Availability: InStock

Home > products > Geotextile Geogrid >

6m Width Fiberglass Plastic Geogrid For Soil Reinforcement

Fiberglass Plastic Geogrid For Soil Reinforcement

Fiberglass Plastic Geogrid

Soil Reinforcement Geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Fiberglass geogrid

Request A Quote

6m Width Fiberglass Plastic Geogrid For Soil Reinforcement

Product Details

Type:

Fiberglass Geogrid

Raw Material:

Fiberglass

Elongation At Break:

Tensile Strength:

15-50kN/m

Width:

1-6m

Mesh Size:

25.4*25.4mm

Geogrid Soil Reinforcement Fiberglass Uniaxial Geogrid for Retaining Wallt

Get Best Price

Fiberglass Geogrid Gravel Grid Asphalt Reinforcement

Get Best Price

Self-adhesive Biaxial 100kn Fiberglass Geogrid For Pavement

Get Best Price

Civil Engineering Glass Fiber Mesh Basalt Reinforcing

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Fiberglass Plastic Geogrid For Soil Reinforcement

Introduction

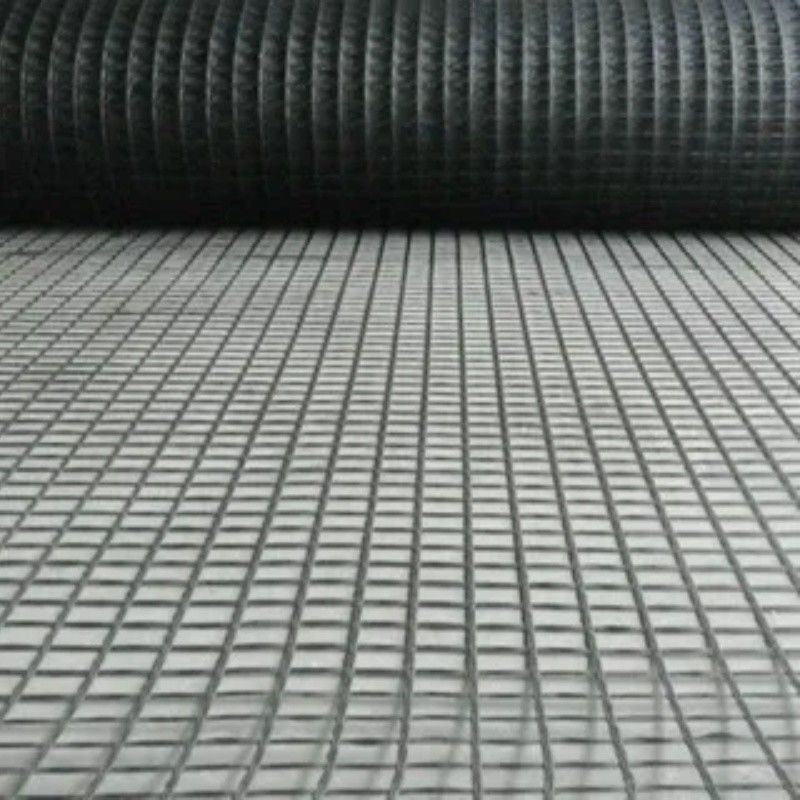

Fiberglass geogrid is a kind of planar mesh material using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt.The strength can be produced from 15 KN to 300KN.Width and length per roll can be customized.

Technical data sheet

Biaxial Fiberglass Geogrid
item	Specification
Type	EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Grid size (mm)	12.512.5 or 25.425.4 or 50.8*50.8
Latitude and longitude breaking strength ≥(KN/M)	30	50	80	100	120	150	200	300
Elongation at break in warp and weft ≤(%)	4

Application

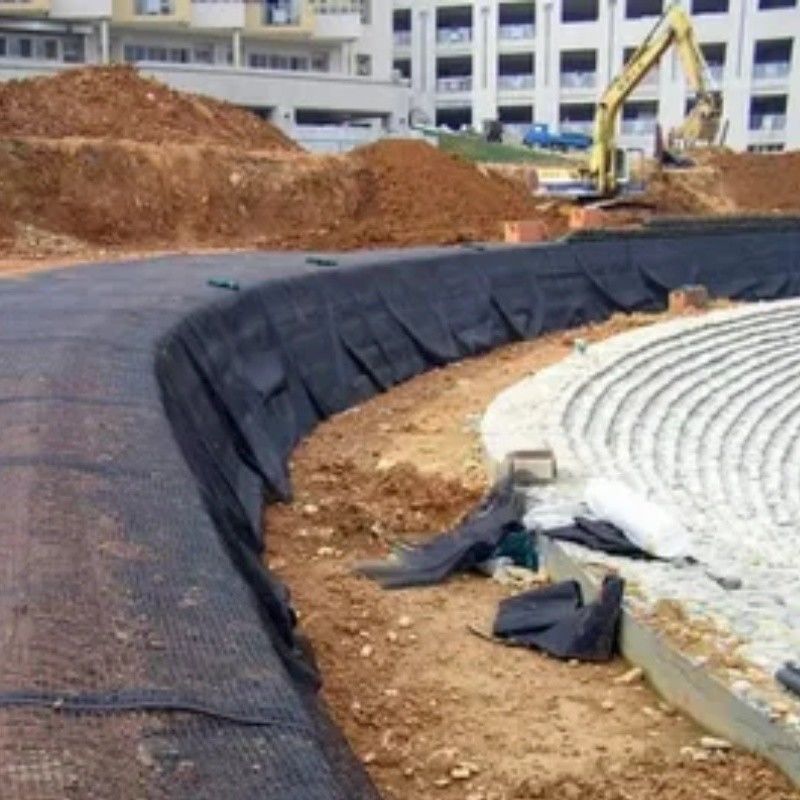

Road engineering: Used to strengthen and enhance the roadbed, prevent the road surface from reflective cracks, and improve the stability and service life of the road surface.

Slope reinforcement: In railway turnouts, highway slopes and other projects, to improve the stability and bearing capacity of the soil body, to avoid ground subsidence and traffic accidents.

Slope protection project: In steep slope protection works, to prevent landslides, collapses and other natural disasters.
