geotube bag and embankment filling sand geotube and woven geotube factory for dewater and concrete
Embankment filling sand geotube with excellent physical and chemical properties, this specially formulated material can resist ultraviolet erosion, affected by chemicals in the soil, not qualitative change or decay, perpetual non-degradable and can resist pests erosion , anti-aging, non-toxic, anti-acid salt corrosion and microbial decomposition, Only permeable soil impervious , plants can be friendly green vegetation; as the newest member of slope material has the following advantages universal environment.
Specification : 500gsm -100gsm , diameter and length can be customized
Properity of geotube :
High tensile strength : 7-200kn/m
High UV resisitance (>=90%/500h)
High seam strength (>=60%)
High resistance to acid and alkali(PH 2-13)
Application of geotube :

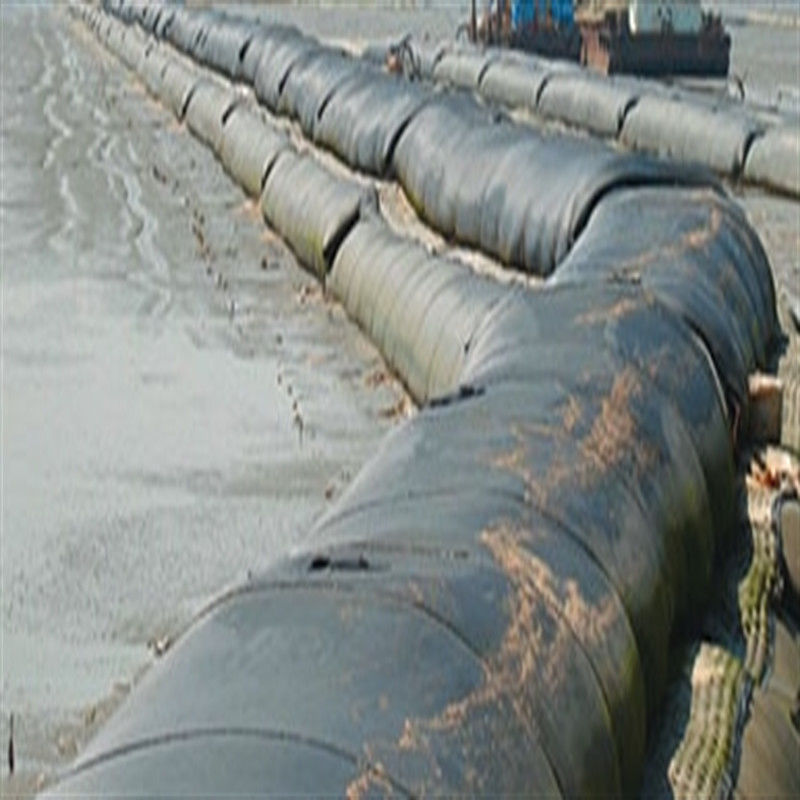

It is widely used for embankment in beach protection jetty,digue,reclaiming land , from sea, wetland, reconstruction, artificial island, and other construction site.
Advantage:
1. Resistant to moisture.
2. Chemical resistance.
3. Anti-biodegradation and animal destruction.
4. High temperature resistance.
5. UV resistance.
Specifications:
Tensile strength:70/105, 120/120,200/200, 250/250, 300/300, 350/350KN/M,
Diameter: 1.0m to 5.0m,
Circumference: 5m to 30m,
Length: 20m, 30m, 50m, 100m,
| Technical Data Sheet |
| Item |
Unit |
Testing Standard |
Technical Parameters |
| GT70X95B |
GT70X95 |
| Breaking strength |
MD |
KN/m |
ISO 10319-2015 |
85 |
85 |
| CD |
KN/m |
ISO 10319-2015 |
105 |
115 |
| Elongation of break |
MD |
% |
ISO 10319-2015 |
13 |
13 |
| CD |
% |
ISO 10319-2015 |
8 |
8 |
| Sewing Tensile Strength |
KN/m |
ISO 10321-2008 |
70 |
90 |
| Static Bursting Strength(CBR) |
KN |
GB/T 14800-2010 |
8 |
9 |
| Equivalent hole size(O90) |
mm |
GB/T 14799-2005 |
0.5 |
0.45 |
| Permeability(Q50) |
L/m2/s |
GB/T 15789-2005 |
50 |
35 |
| UV-resistance (500 Hours strength retention) |
% |
ASTMD4355-2014 |
90 |
90 |
FAQ
What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
