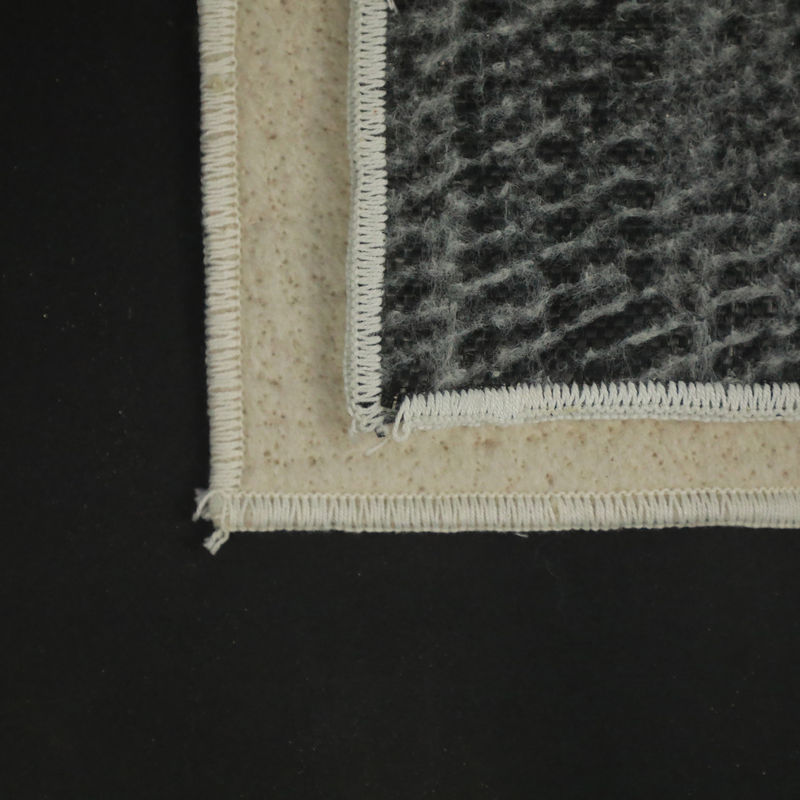

Bentonite Geosynthetic Clay Liner (GCL)
Product Description
GCLs are high performance environmental liners comprised of a layer of lowpermeability sodium bentonite combined with geosynthetic carriers, such as woven and/or nonwoven geotextiles, and in some cases polymer geomembranes. GCLs have been proven to provide better engineered performance and durability than several feet of compacted clay with a total composite thickness of less than one quarter of an inch.
Technical Data:
|
No. |
Item |
Value |
|
|
|
|
GCL-NP |
Standard |
|
1 |
GCL swell index, mL/2g |
≥24 |
JG/T 193-2006 |
|
2 |
Methylene blue index, g/100g |
≥30 |
JG/T 193-2006 |
|
3 |
Tensile strength, N/100mm |
≥600 |
JG/T 193-2006 |
|
4 |
Elongation at break, % |
≥10 |
JG/T 193-2006 |
|
5 |
Peel strength between non-woven geotextile and woven geotextile, N/100mm |
≥40 |
JG/T 193-2006 |
|
6 |
Water permeability, m/s |
≤5.0x10-11 |
JG/T 193-2006 |
|
7 |
Hydrostatic preserve |
0.4MPa,1h,no leakage |
JG/T 193-2006 |
|
8 |
Fluid loss,mL |
≤18 |
JG/T 193-2006 |
|
9 |
GCL durability, mL/2g |
≥20 |
JG/T 193-2006 |

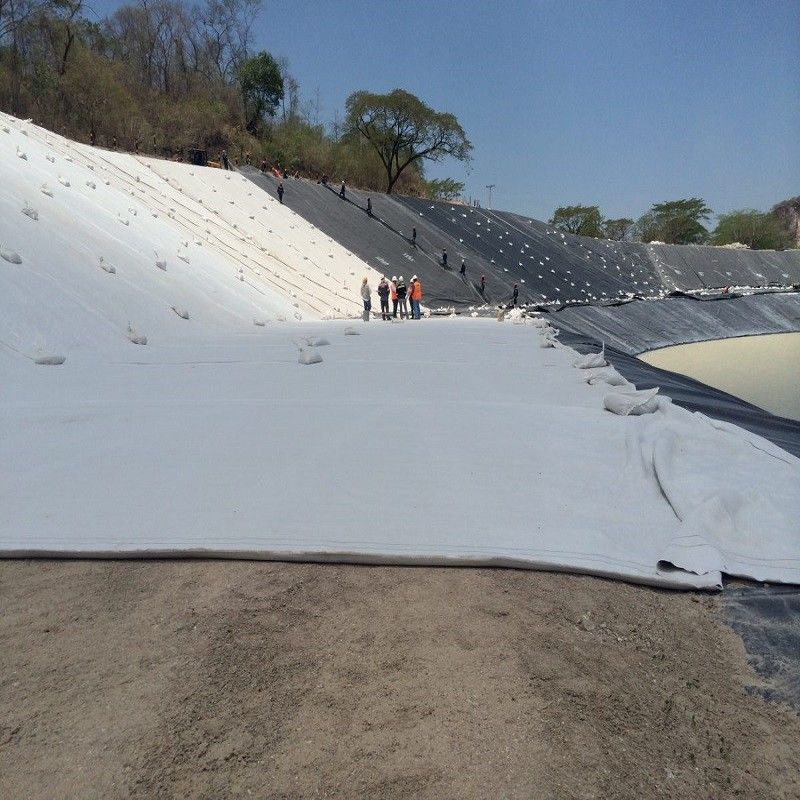

Application
Mainly used in environmental engineering of waste landfills, underground reservoirs, underground infrastructure construction projects, solving the sealing, isolation, leakage problem,
the effect is good, resist destructive.
1.landfill
2.base liner applications under roads, railways,
3.containment for ground tank farms, dams, canals, ponds, rivers and lakes.
