Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO,SGS
Model Number:
geotextile
Contact Us
Video
Video

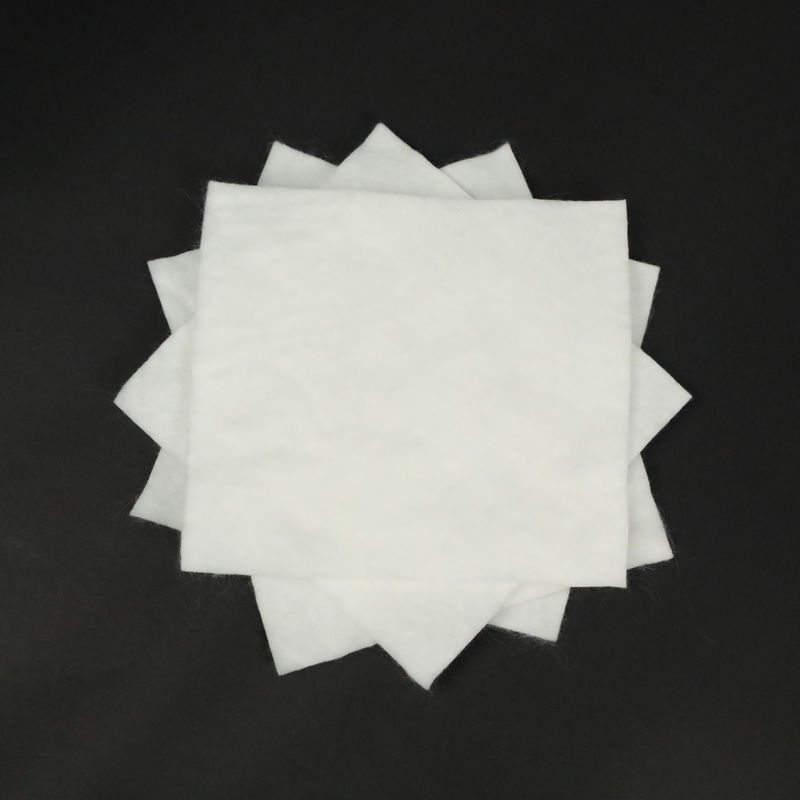

Product Description
PET Long fiber geotextile was made from virgin polyester chips,the continous filament was extruded from polyester chip
by machine directly by spunbond process.Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with
highter strength fabric.so Nonwoven Geotextile Fiber has high strength,good creep property excellent and erosion
resistance, aging-resistance and heat resistance.
| Product Name | Fiber Geotextile |
| Material | PET |
| Width | 1m-6m or follow customers' demand |
| Length | 50m/roll,100m/roll,150m/roll or follow your request |
| Color | White |
| Certification | ISO9001:2008,CE |
| Standard | GB/T 17639-2008 |
Product Parameters
|
Non-woven Geotextile Technical Parameter (GB standard)
|
|||||||||
|
Item
|
unit
|
Standard Specification
|
|||||||
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
||
|
Thickness≥
|
mm
|
0.9
|
1.3
|
1.7
|
2.1
|
2.4
|
2.7
|
3
|
3.3
|
|
width Deciation
|
%
|
0.5
|
|||||||
|
Breaking strength
|
KN/M
|
2.50
|
4.50
|
6.50
|
8.00
|
9.50
|
11.00
|
12.50
|
14.00
|
|
Breaking Elongation
|
%
|
25-100
|
|||||||
|
Weight Tolerance
|
g/m²
|
-8
|
-8
|
-8
|
-8
|
-7
|
-7
|
-7
|
-7
|
|
CBR Tear Strength≥
|
KN
|
0.3
|
0.6
|
0.9
|
1.2
|
1.5
|
1.8
|
2.1
|
2.4
|
|
Tear Strength≥
|
KN
|
0.08
|
0.12
|
0.16
|
0.2
|
0.24
|
0.28
|
0.33
|
0.38
|
|
Vertical Permeability
|
N/5cm
|
Kx(10-¹-10-³)
|
|||||||
|
EOS 090
|
mm
|
0.07-0.2
|
|||||||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment.
If you have another question, please feel free to contact us at any time.
