Woven Geotextile Tube Geotube for Sludge Dewatering
Product Description

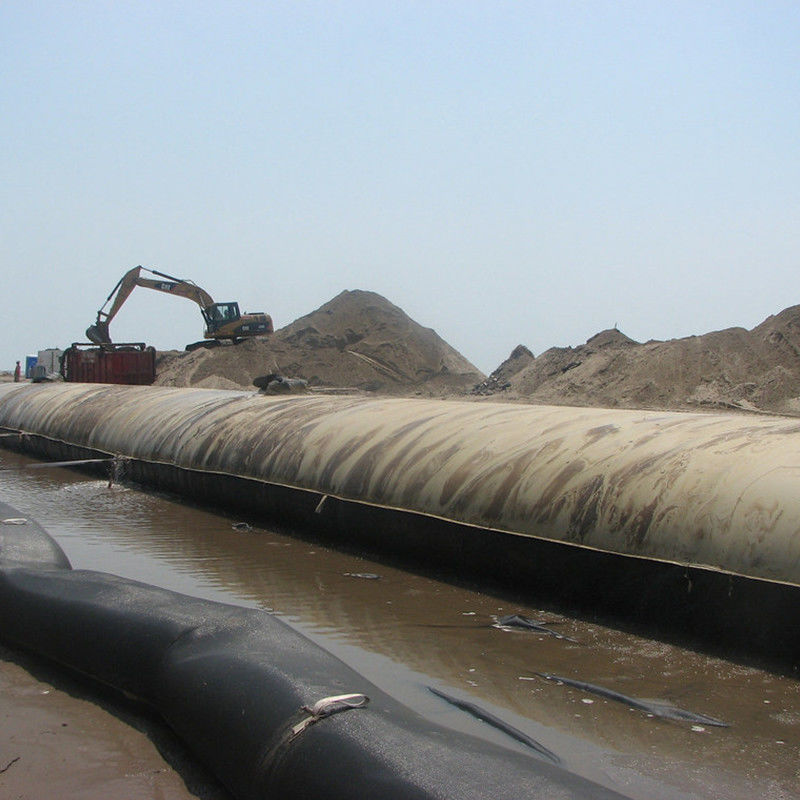

Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles.
| Geotextile tube for Coastal protection & Dewatering | |||||||||
| Item | Test Standard | Unit | Technical Data | ||||||
| Material | Polypropylene With Black or Sand Color | ||||||||
| Spec | HT50 | HT70 | HT90 | HT105 | HT120 | HT200 | |||
| Tensile Strength | MD | ASTM D4595 | KN/M | 50 | 70 | 90 | 105 | 120 | 200 |
| CD | ASTM D4595 | KN/M | 50 | 95 | 120 | 105 | 120 | 200 | |
| Elongation | MD/CD | ASTM D4595 | % | 10,11,12,13,15 | |||||
| Opening Size O90 | mm | 0.05-0.90 or Customized | |||||||
| Length | m | 20,30,50,100m | |||||||
| Circumference | m | 5-20m | |||||||
- Highly effective technology that produces high volume reduction and retention of solids.
- High effluent discharge rate with clear filtrate that can be recirculated through the system.
- Custom-sized containers saves expensive and limited land space
