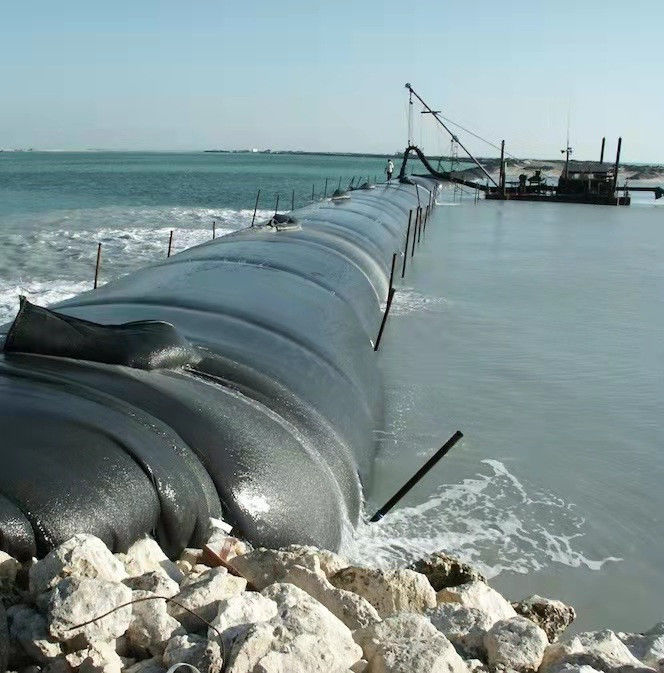

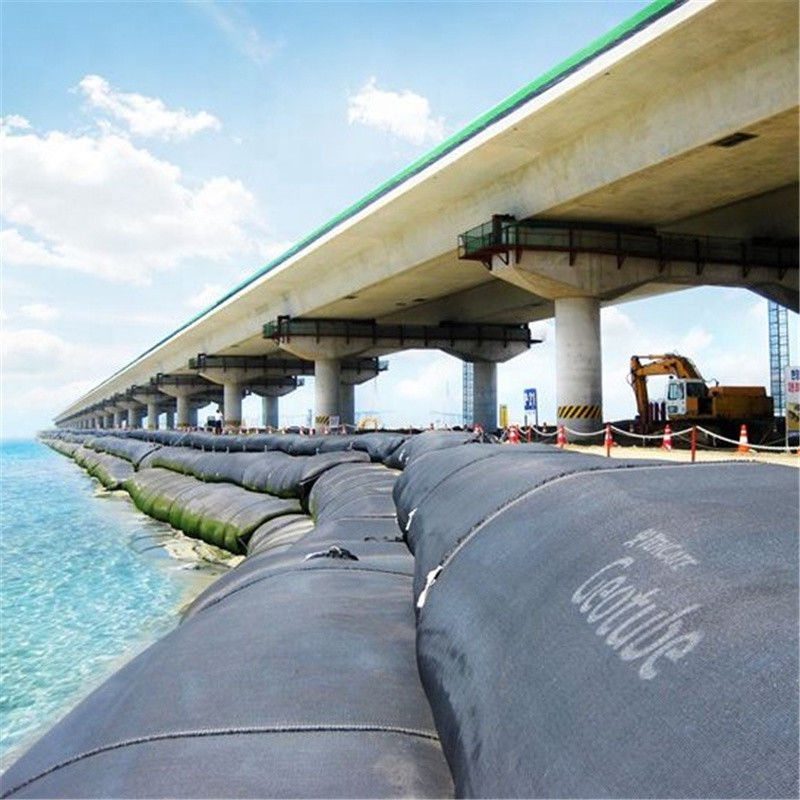

PP geotextile Geotube Marine Construction Shoreline Restored Sludge Dewatering Geotube
Product Description
Domestic wastewater is harmful to the environment due to the presence of high oxygen-demanding
material, nutrients, suspended solids, pathogenic organisms, organic compounds and other contaminants.
Geotube dewatering technology involves the use of Geotube dewatering container that
functions as follows:
• Containment: Solids are contained inside the Geotube dewatering unit.
• Dewatering: Water drains out of the Geotube dewatering unit.
• Consolidation: Over time, allows further drying of biosolids to take place.
At the end of the dewatering use, the Geotube dewatering unit can be cut open, exposing
highly dewatered solids that can be easily excavated and transported away.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
Factory direct popular polpropylene Dewatering bag Geotube for lake desilting and water purification
Custom fabricated with seaming techniques that withstand pressure during pumping operations.
High flow rate allows residual materials to dewater, while containing solids.
we offer materials that provide solutions for the following applications:
Mineral Processing
Marine Remediation
Pulp & Paper
Power & Utility
Light Industrial
Aquaculture
Agriculture
Municipal
