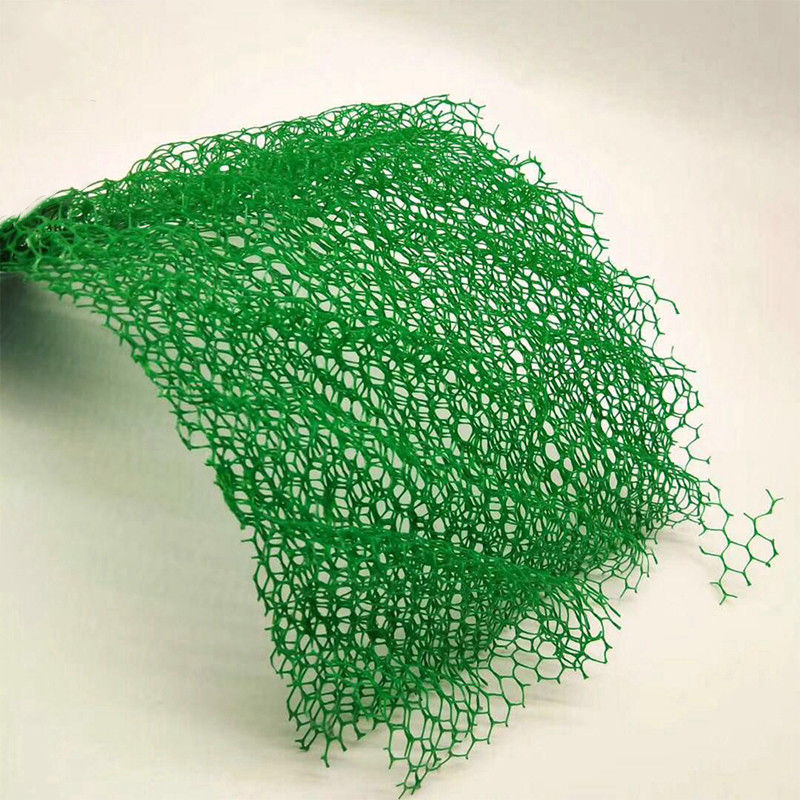

3D HDPE Geomat For Construction And Slope Protection
Product Description:
Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc
Product parameters:
| Three-dimensional Geonet | ||||
| item | Specification | |||
| Type | EM2 | EM3 | EM4 | EM5 |
| Unit area weight≥(g/㎡) | 220 | 260 | 350 | 430 |
| Thickness≥(mm) | 10 | 12 | 14 | 16 |
| Longitudinal tensile strength≥(KN/M) | 0.8 | 1.4 | 2 | 3.2 |
| Transverse tensile strength≥(KN/M) | 0.8 | 1.4 | 2 | 3.2 |

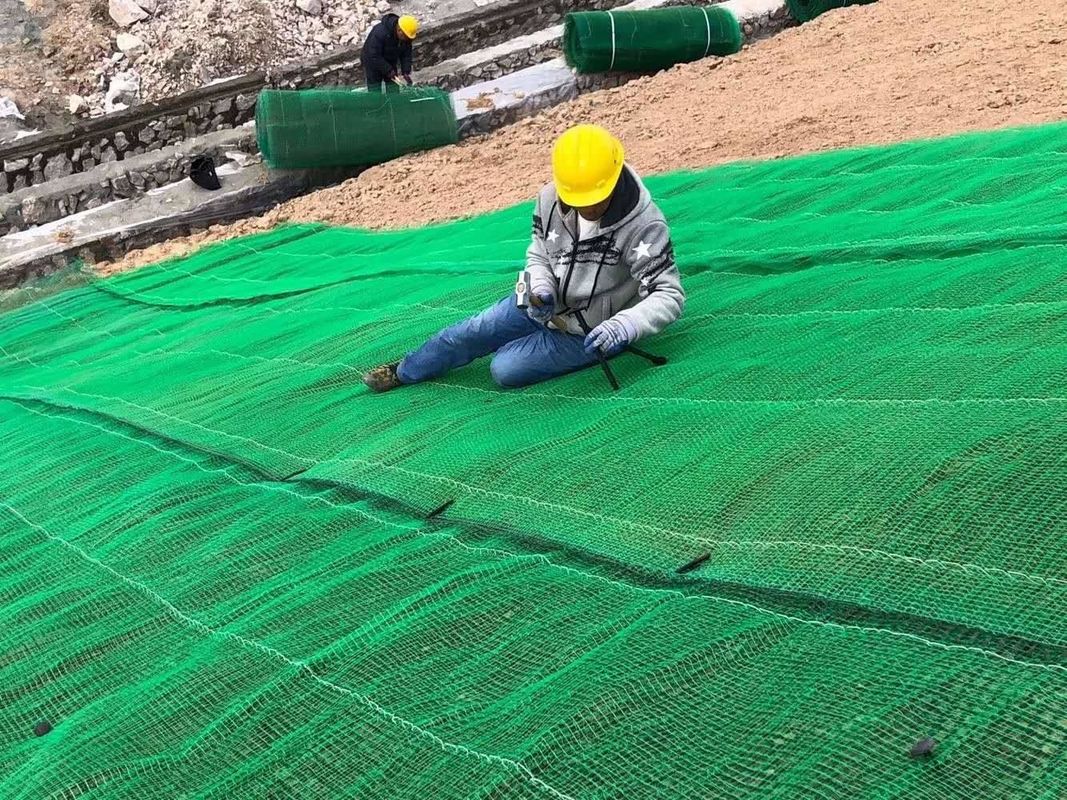

Installation:
Shaping and compacting the sub soil to the required profile.
1. Unrolling the 3D Geo-mat down the slope and fixing it in position with 150---300mm u-pegs.U-Pegs should be spaced between 300mm and 700mm depending on the substrate to ensure that the 3D Geo-mat makes contact with the surface.Overlaps should be pegged at 100mm centres in dry applications and 300mm in wet applications….
2. Anchoring the top of the embankment in spade-deep trenches and ,Where necessary,anchoring the edges to prevent the 3D Geo-mat slipping on the slope and uplift…
3. Longitudinal edges should be overlapped 50mm and transverse edges overlapped 150mm…
4. After seeding the subsurface at a rate of 20-30.
FAQ:
1. What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
2. What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
3. What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration.
