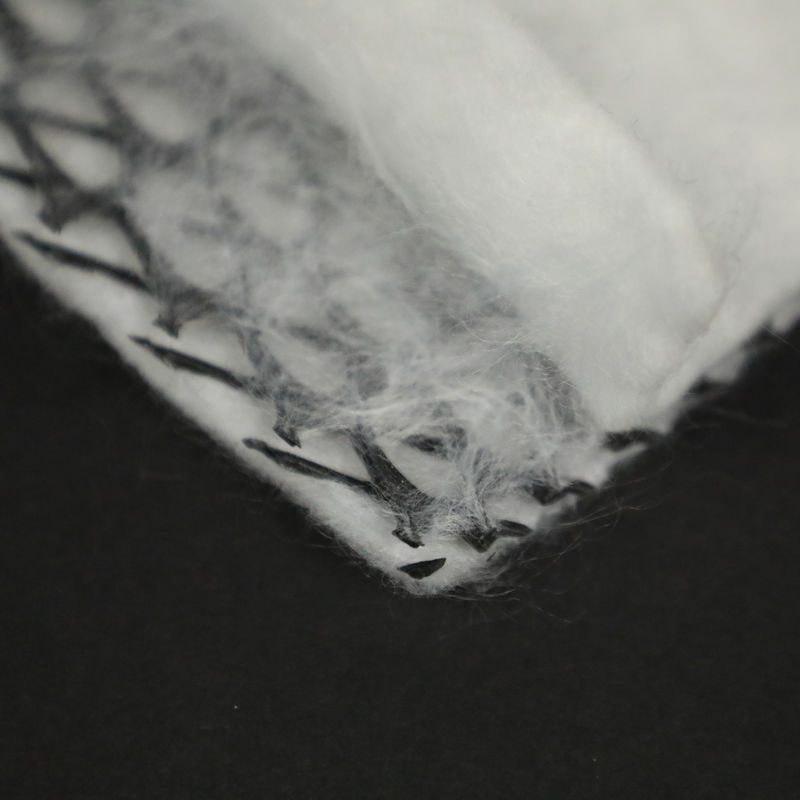

Good Hydraulic Conductivity 3D Drainage Composite Net For Tunnels

Product Details

Model NO.:

3D Drainage Composite Net

Application:

Electrical Engineering, Roads & Railways & Airports Project, Water Conservancy Project

Function:

Reinforcement, Drainage

Classification:

Composite Geotextiles

Usage:

Drainage

Material Geonet:

HDPE

Dimpled Drainage Membrane Greening Project PVC Perforated Dimple Drainage Board Groundwork Water Solution Water Solution

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

HDPE Drainage Boards For Construction Projects

Get Best Price

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Geocomposite Drainage Geonet

Composite drainage net is a kind of filtering, drainage, protection, and support function three-dimensional construction net, has good hydraulic conductivity, high tensile strength, and shear strength, working as separation or protecting layers.

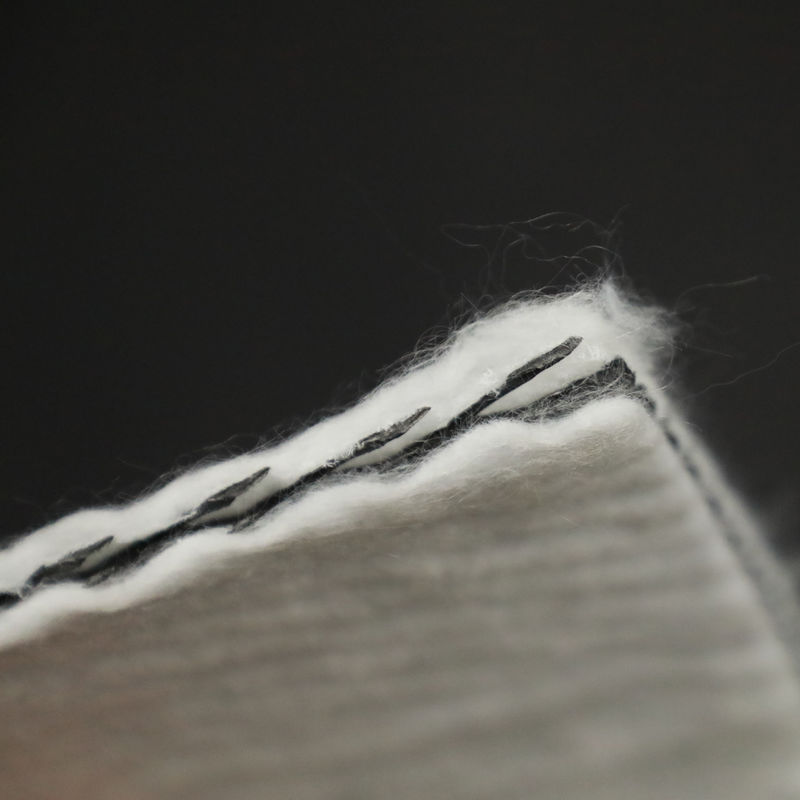

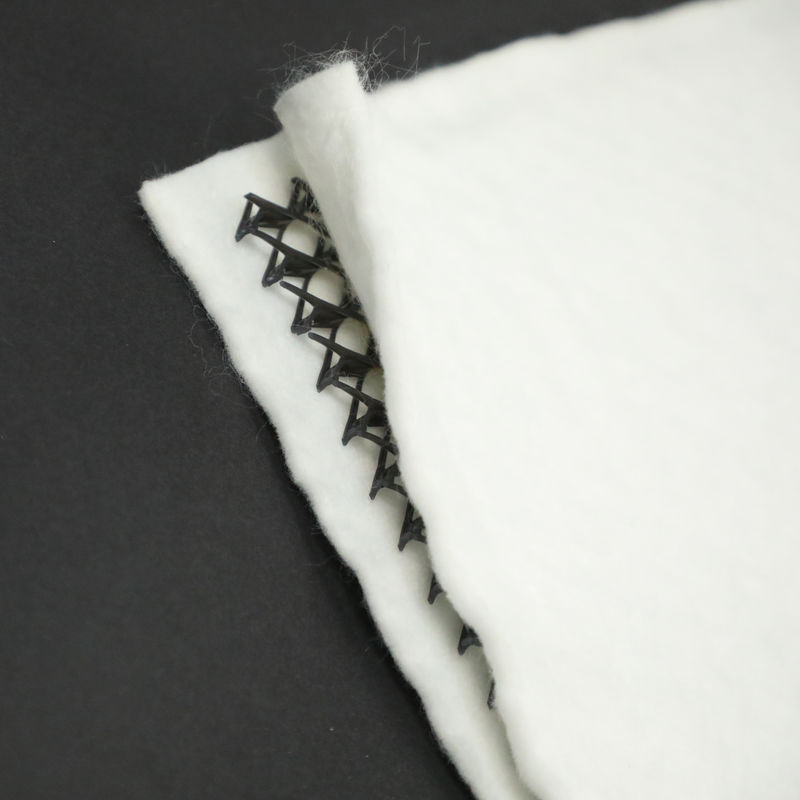

Good Hydraulic Conductivity 3D Drainage Composite Net for Tunnels

Specifications:

Product name: three dimensional composites drainage network.
Material: high density polyethylene.
Length: 30 m, 40 m, 50 m or at your requests.
Width: 2 m - 4 m.
Thickness: 5 mm - 8 mm.
Non woven geotextile unit weight: 200 g/m2.
Mass per unit area: 700 g/m2, 1000 g/m2, 1300 g/m2, 1600 g/m2.

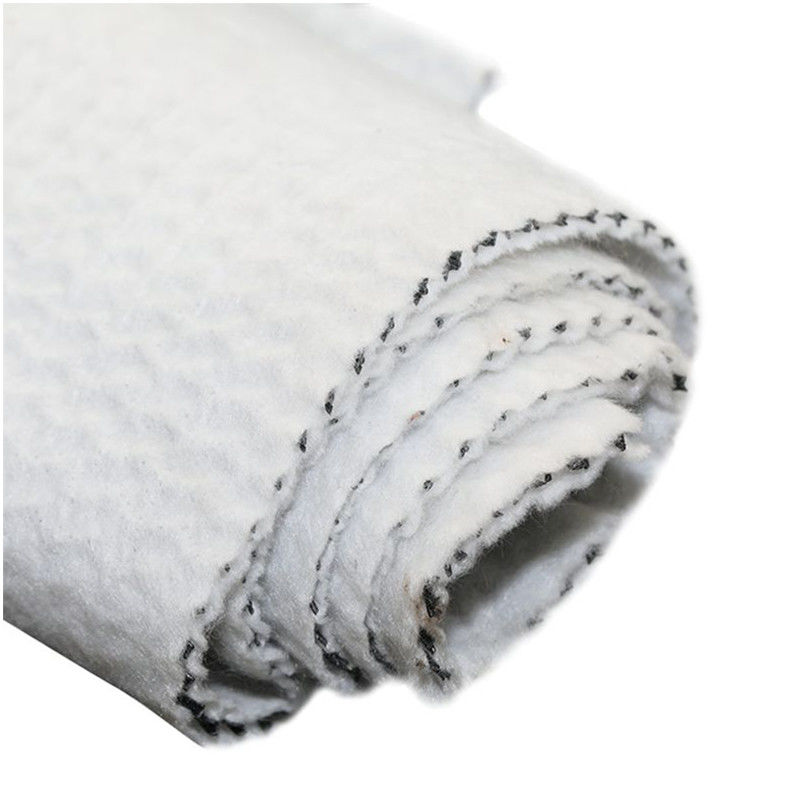

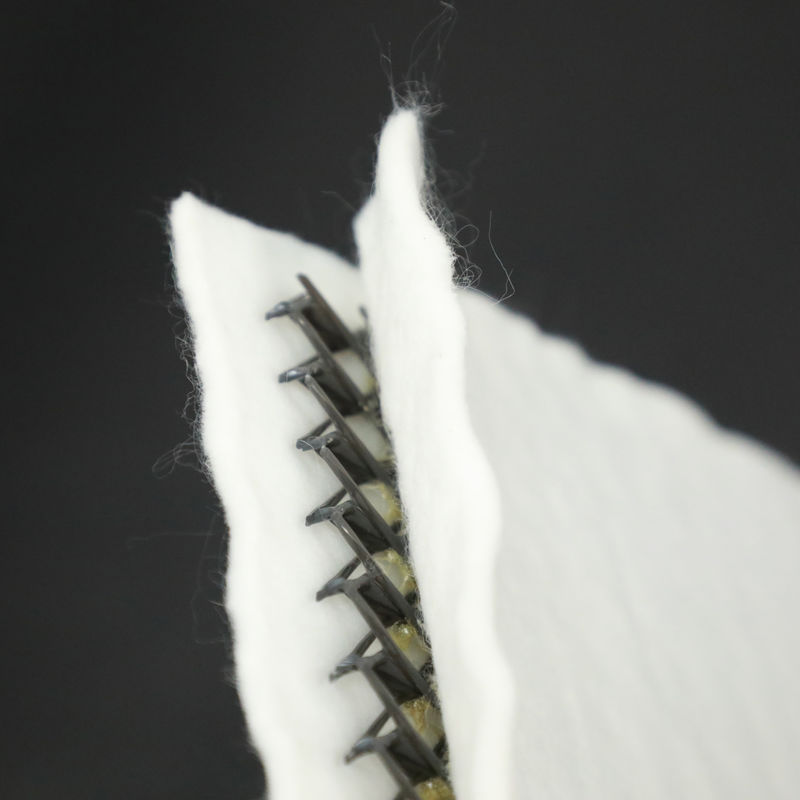

Good Hydraulic Conductivity 3D Drainage Composite Net for Tunnels

Geocomposite drainage Geonet Techinical data

NO.	Item	Unit	Spec./ Standard value
			1200g/m2	1400g/2	1600g/m2	1800g/m2	2000g/m2
1	Unit weight of compond	g/m	≥1200	≥1400	≥1600	≥1800	≥2000
2	Thickness of compond	mm	≥6.0	≥7.0	≥8.0	≥9.0	≥10.0
3	Longitudinal tensile strength of compond productiong	KN/m	≥16.0
4	water diversion ration of compond production	m2/s	≥1.2×10-4
5	peel strength of network core and geotextile	KN/m	≥0.3
6	Thickness of network core	mm	≥5.0	≥5.0	≥6.0	≥7.0	≥8.0
7	Tensile strength of network core	KN/m	≥13.0	≥15.0	≥15.0	≥15.0	≥15.0
8	Unit weight of geotextile	g/m2	≥200
9	Seepage coefficient of geotextile	cm/s	≥0.3
10	Width	m	2.1
11	Length of one roll	m	30

Advantages:

The characteristics of 3D composite drainage net:
The drainage ability is strong, can withstand the long-term high load
The high tensile strength and shear strength of the pit
To reduce the probability of the geotextile is embedded in the network core, can protect the long-term stability of the rate of water
The three-dimensional composite drainage net can withstand more than 2000kpa compression load
Far greater than the ordinary drainage network resilience

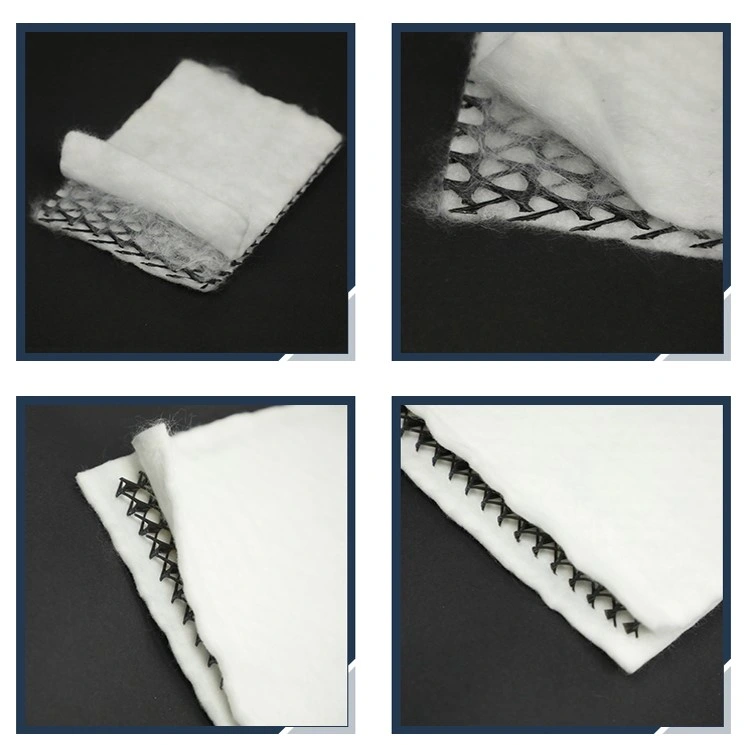

Good Hydraulic Conductivity 3D Drainage Composite Net for Tunnels
Applications:

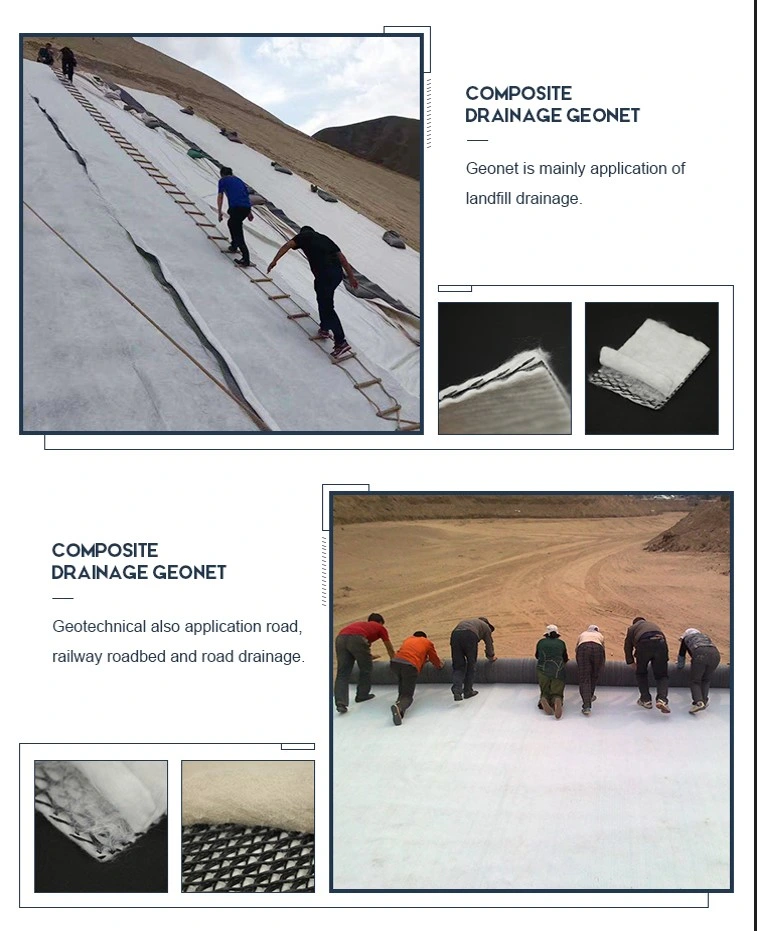

1) Landfill drainage;
2) Roadbed and road drainage;

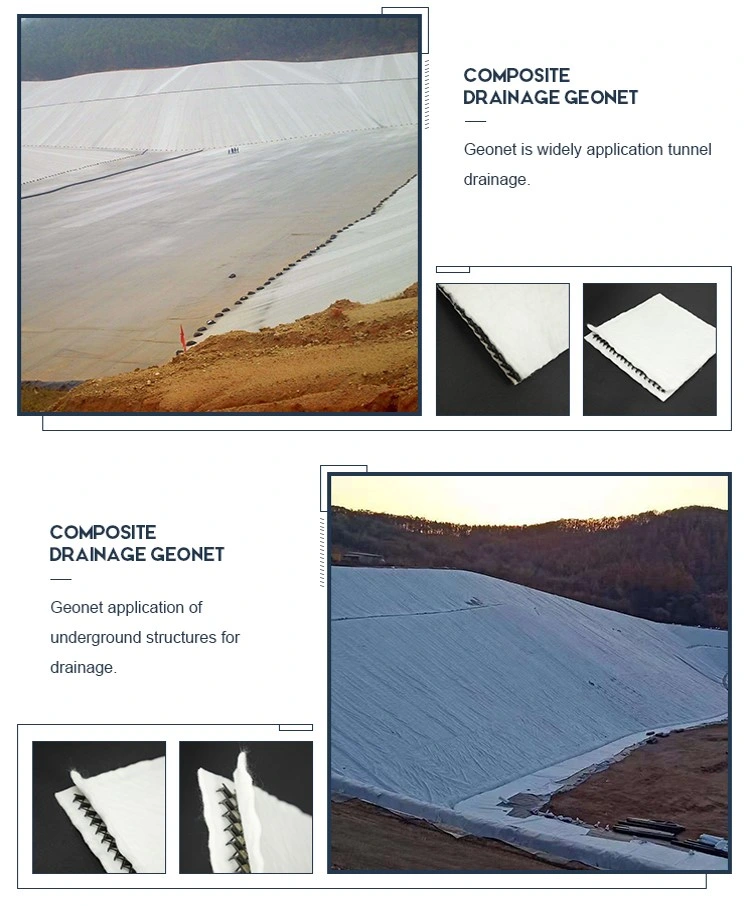

3) Railway drainage, tunnel drainage, underground structure drainage.
4) The retaining back wall drainage,
5) gardens and sports grounds drainage.

FAQ

Are you a manufacturer or a trading company?
Our factory has been established for over 15 years ,and has its own trading department. So we have the competitive price with best quality.

How does your factory carry out quality control?
Quality Control is one of our most important link. All of the product will be fully processed and strictly tested before packaging for shipment.

Can I get samples for checking the quality?
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.

What's your MOQ?
Our MOQ is usually 2000sqm per color.

What's your delivery time?
It's about 14 days after we received the deposit.

What's your payment terms?
TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or LC at sight.

Can I visit your factory?
We always welcome you to visit our factory. Transportation is very convenient in China. You can take high-speed rail or plane, and we will pick you up in advance.
