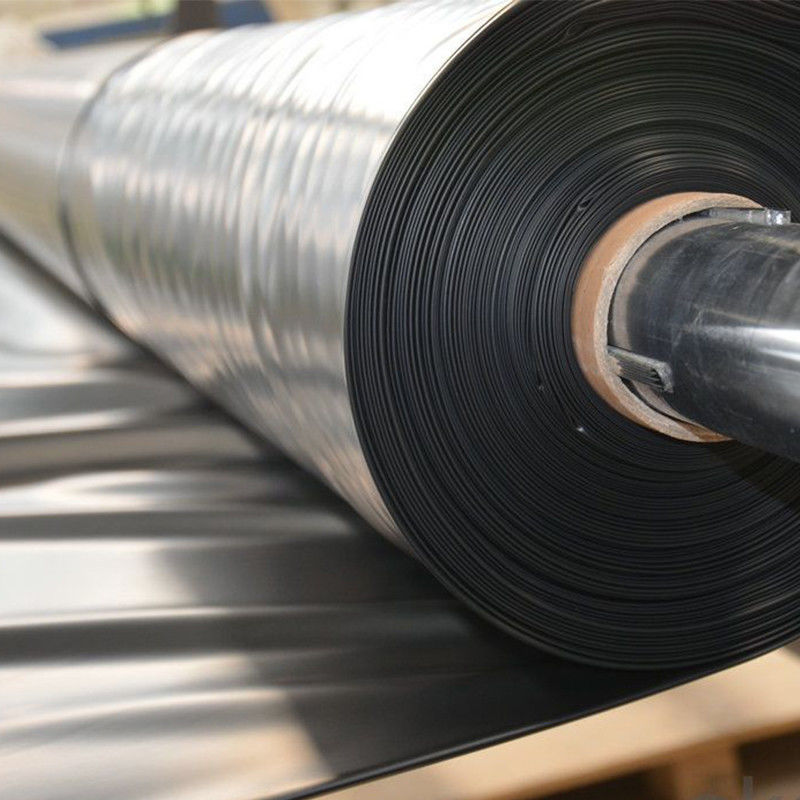

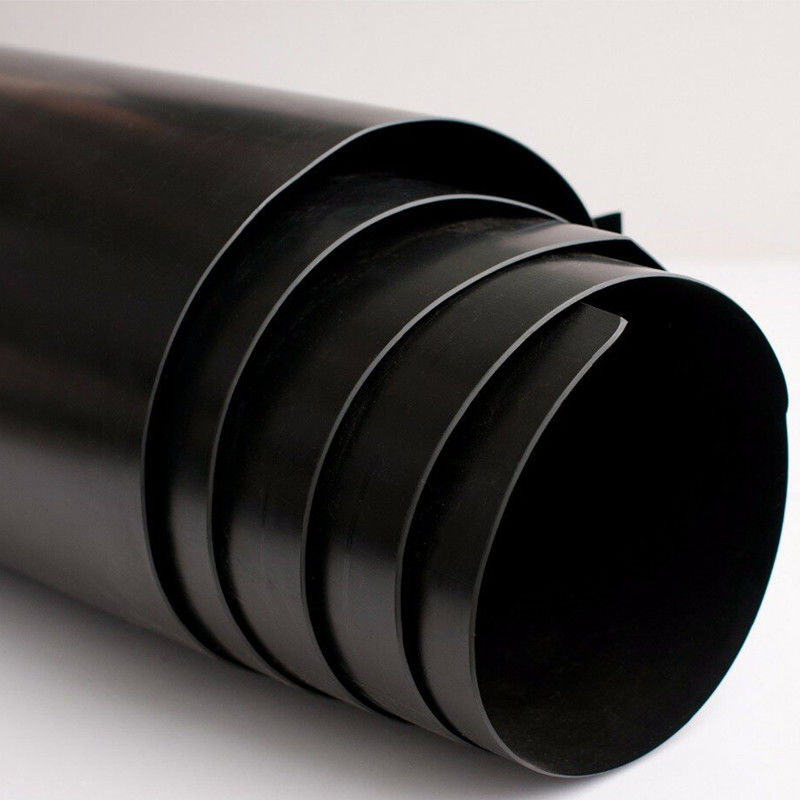

Anti Seepage Waterproof Impermeable HDPE Geomembrane 0.2mm - 2.5mm For Landfill

Waterproof Impermeable HDPE Geomembrane

Anti Seepage HDPE Geomembrane

0.2mm HDPE Liner

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geomembrane

Request A Quote

Product Details

Usage:

Waterproof Projects

Product Name:

HDPE Geomembrane Waterproof Liner

After-sales Service:

Online Technical Support

Raw Material:

100% Virgin High Density Polyethylene

Density:

0.94G/Cm3

Application:

Transportation Project, Hydraulic Project, Geotechnical Project, Environmental Project

100% Virgin Material Waterproof HDPE Geomembrane For Fish Pond Liner

Get Best Price

HDPE LDPE 0.5MM 1MM 1.5MM 2MM POND LINER GEOMEMBRANE FOR AQUACULTURE LANDFILL

Get Best Price

Prime Quality HDPE Membrane Liner 0.5 mm 1.0mm Fish Pond Liner

Get Best Price

0.3 - 2.5mm HDPE Geomembrane Dam Reservoir Mining Fish Farm Geomembrane Pond Liner

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Factory Price 0.2mm-2.5mm ASTM GM13 Anti-Seepage Waterproof Impermeable HDPE Geomembrane for Aquaculture Dam Landfill Tunnel Biogas Fish Farm

HDPE Geomembrane Technical Parameter (GB standard)
Spec Properties	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	0.5mm	0.75mm	1.0mm	1.25mm	1.5mm	2.0mm	2.5mm
Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation	7KN/m 10KN/m -- 600%	10KN/m 15KN/m -- 600%	13KN/m 20KN/m 11% 600%	16KN/m 25KN/m 11% 600%	20KN/m 30KN/m 11% 600%	26KN/m 40KN/m 11% 600%	33KN/m 50KN/m 11% 600%
Density(≥)	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc
Puncture Restistance (≥)	120N	180N	240N	300N	360N	480N	600N
Carbon Black Content	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon black Dispersion	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)
Tear Resistance (≥)	56N	84N	115N	140N	170N	2255N	280N
Oxidative Induction Time(OIT) Standare OIT(≥)	60min.	60min.	60min.	60min.	60min.	60min.	60min.

Basic Details
Geomembrane; pond liner
1.Main Thickness:0.1mm,0.2mm,0.3mm,0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm
2.Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m,10m
3.Main Length:50m/100m
4.Main Color: black, white, blue, green

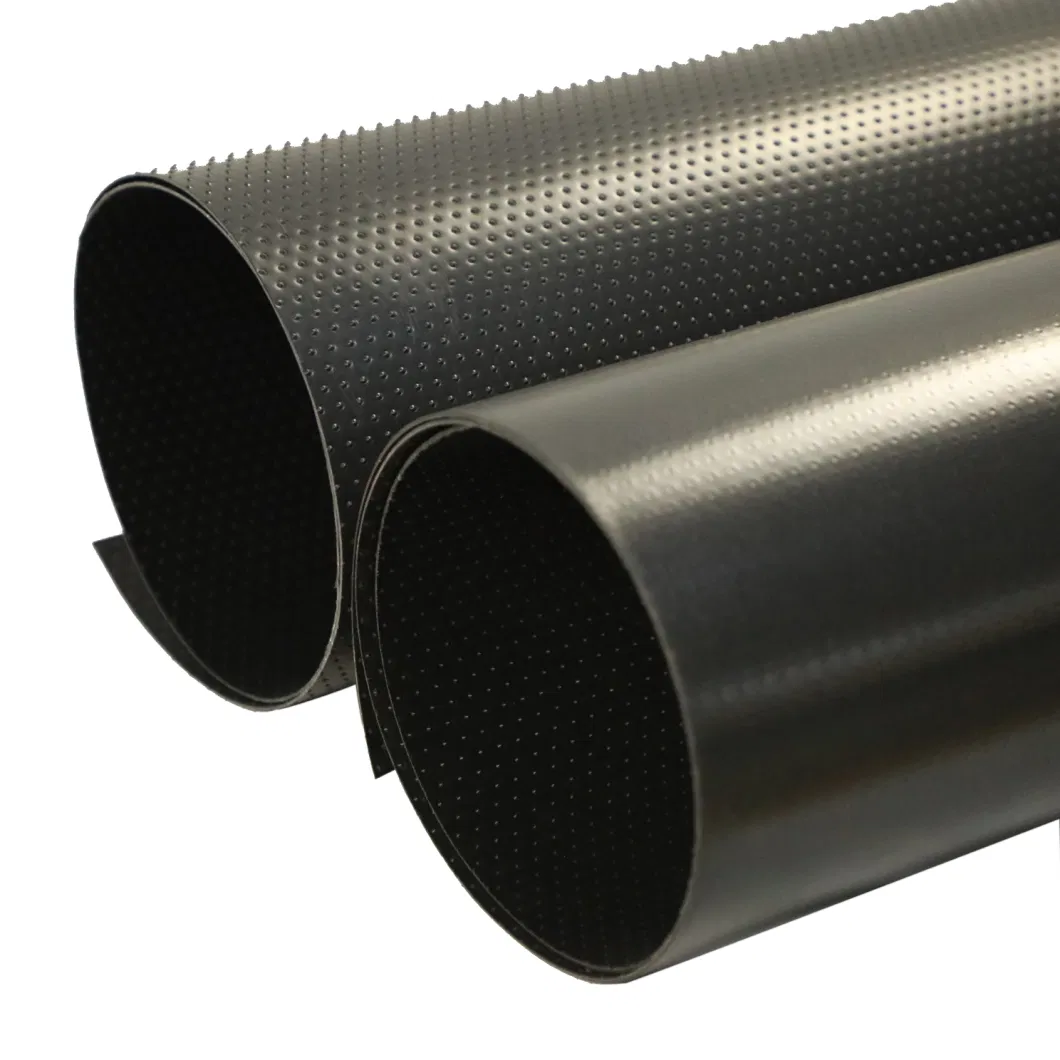

5. Optional surface: Textured or Smooth surface.
6.Material:HDPE, LDPE,LLDPE,EVA
7. Certificate & Test: ISO, TUV,SGS
8. Quality Control: Third party test and factory lab test

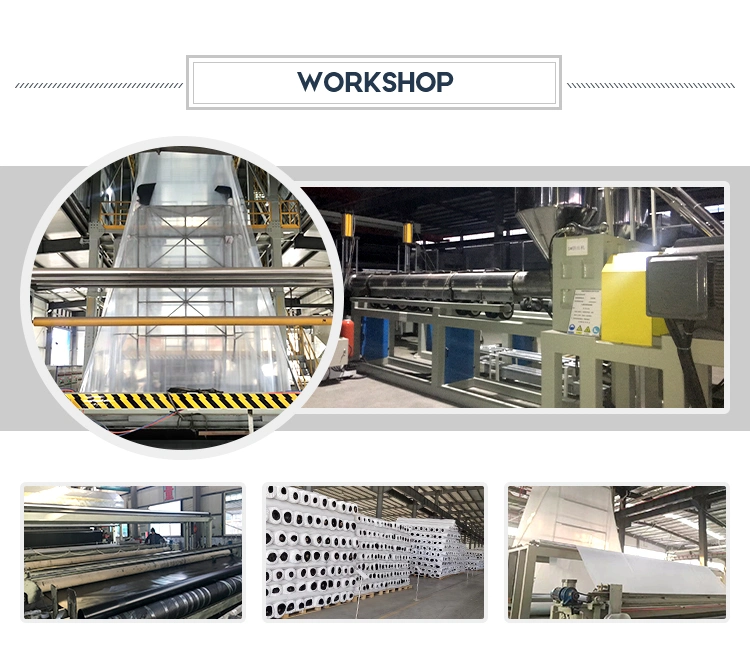

HDPE Geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), water containment applications.
Factory Price 0.2mm-2.5mm ASTM GM13 Anti-Seepage Waterproof Impermeable HDPE Geomembrane for Aquaculture Dam Landfill Tunnel Mining Biogas Fish Farm

Factory Price 0.2mm-2.5mm ASTM GM13 Anti-Seepage Waterproof Impermeable HDPE Geomembrane for Aquaculture Dam Landfill Tunnel Mining Biogas Fish Farm

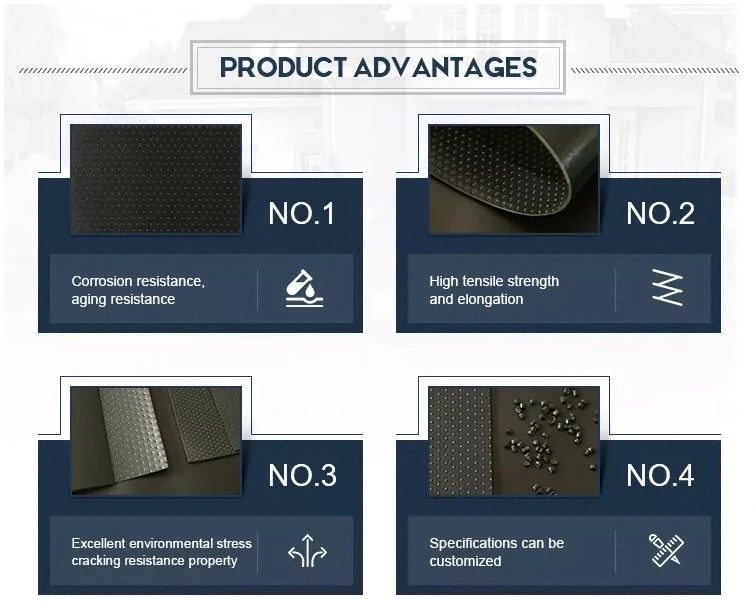

Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Main Features:
1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting

HDPE Geomembrane Application:

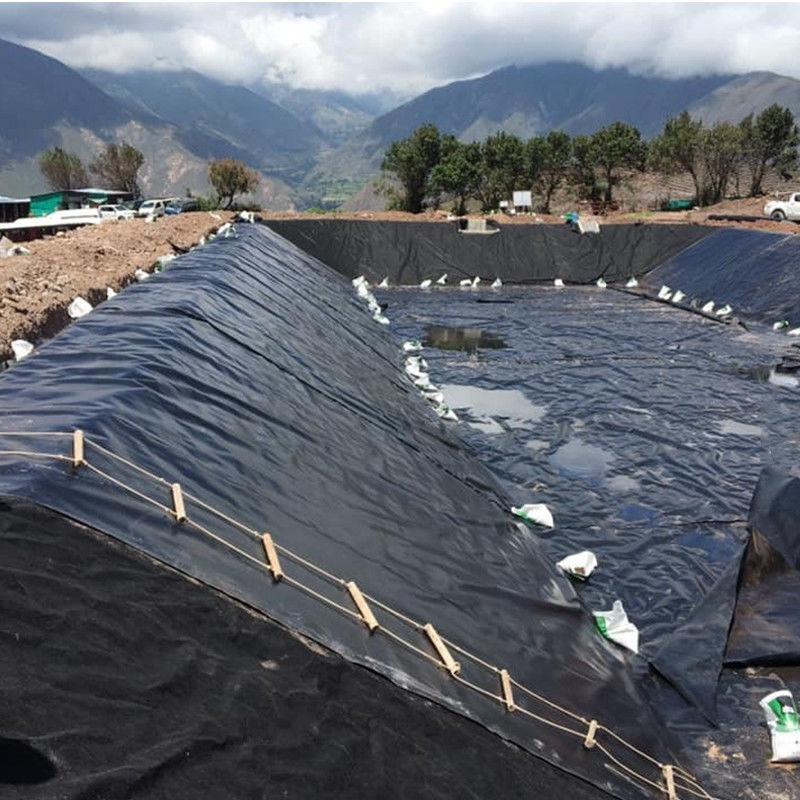

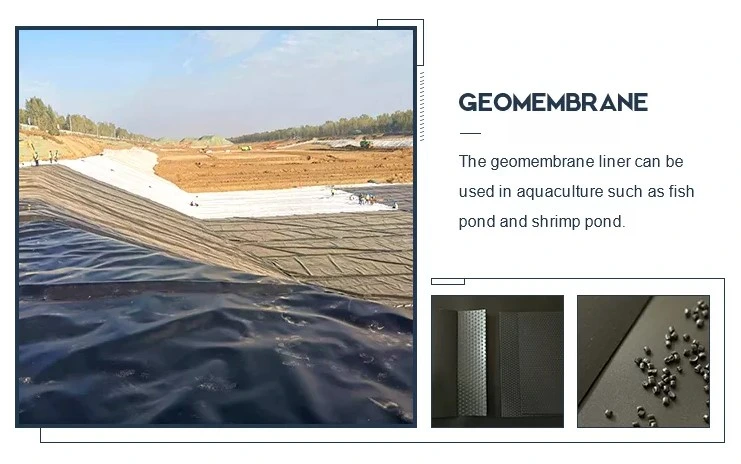

(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

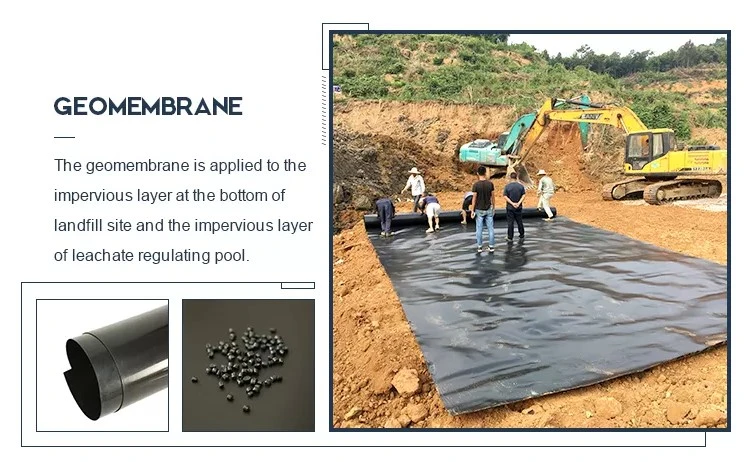

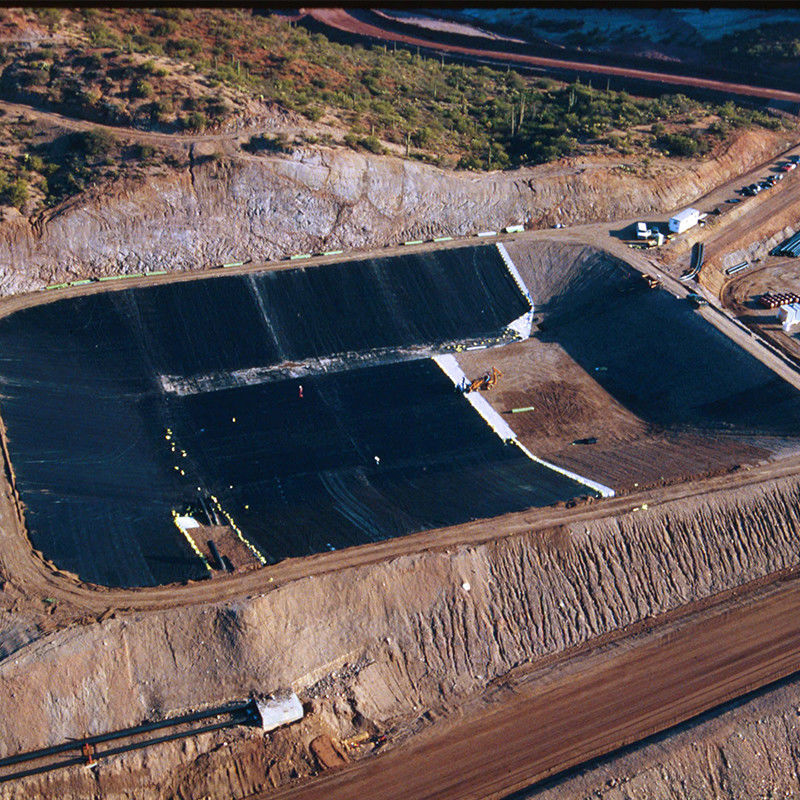

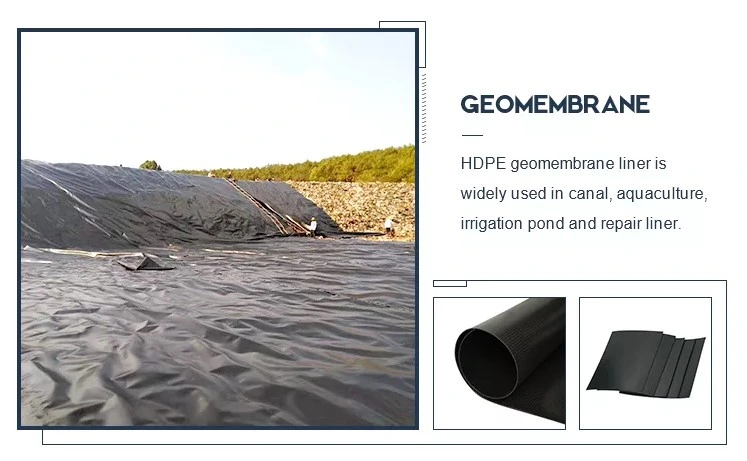

(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.

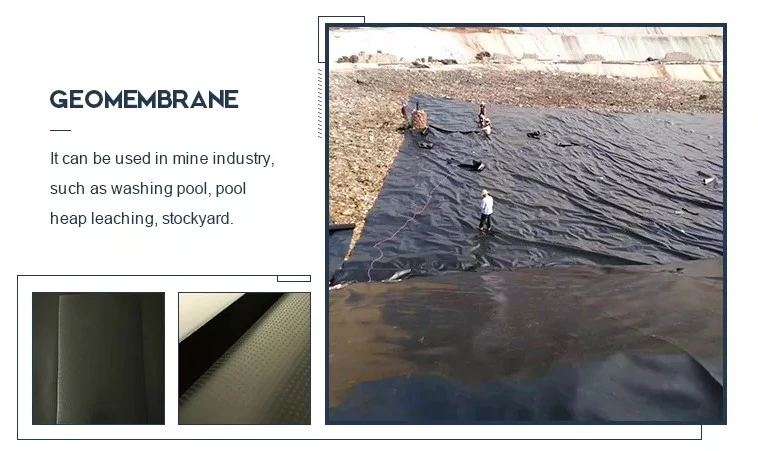

HDPE geomembrane suitable : washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
Factory Price 0.2mm-2.5mm ASTM GM13 Anti-Seepage Waterproof Impermeable HDPE Geomembrane for Aquaculture Dam Landfill Tunnel Mining Biogas Fish Farm

Construction Method

1. The slope shall be laid in order from top to bottom. Don't pull it too tight.
2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.

Factory Price 0.2mm-2.5mm ASTM GM13 Anti-Seepage Waterproof Impermeable HDPE Geomembrane for Aquaculture Dam Landfill Tunnel Mining Biogas Fish Farm FAQ

1.Are you manufacturer or trade company?
We Zhonglu are a professional geosynthetic products manufacture, we will provide you with top-class service.

2. What's the order process?
a.Inquiry--- The more detailed information you provide, the more accurate product we could provide you.
b. Quotation---Resonable quotation with clear specifications.
c. Sample confirmation---Sample could be sent before the final ordering.
d. T/T 30% in advanced, and the balance could be paid before shipment.
e. Production---Mass production.
f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.

3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

4. How does your factory do regarding quality control?
"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.

5.What's the payment method you accept?
T/T, L/C,D/P etc.
