HDPE Roof Waterproof Membrane Greening Plastic Dimple Drainage Board

HDPE Roof Waterproof Membrane Greening Plastic Dimple Drainage Board

Greening Plastic Dimple Drainage Board

Roof Waterproof Dimple Drainage Board

HDPE Dimple Drainage Sheet

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Dimpled Drainage Membrane

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Type:
Drainage Board
Length:
10m/20m/30m
Feature:
Waterproof Storage Drainage Isolation
Material:
HDPE
Usage:
Roof, Garden
Product Description

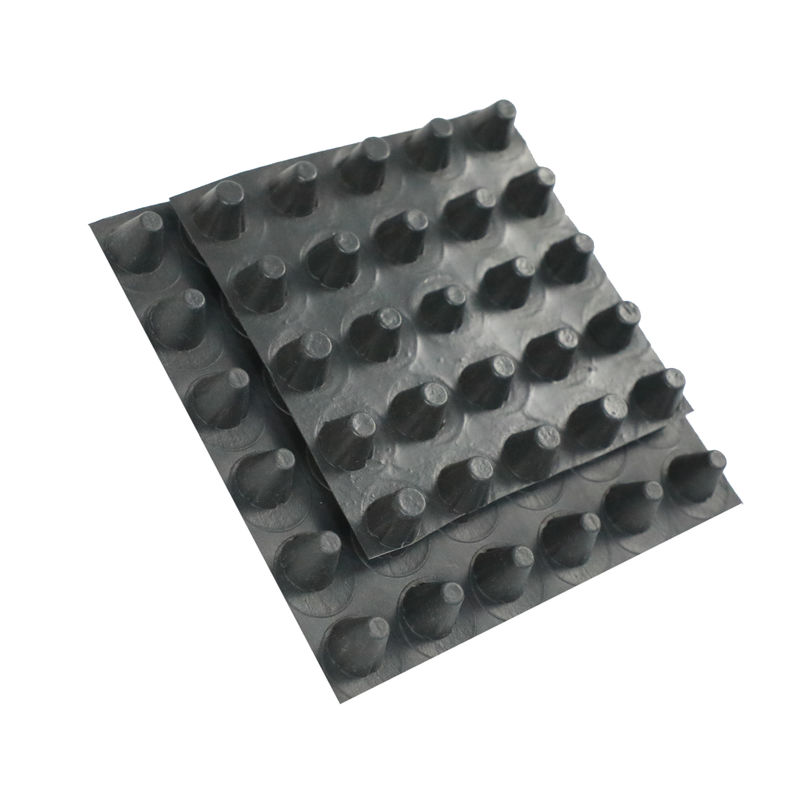

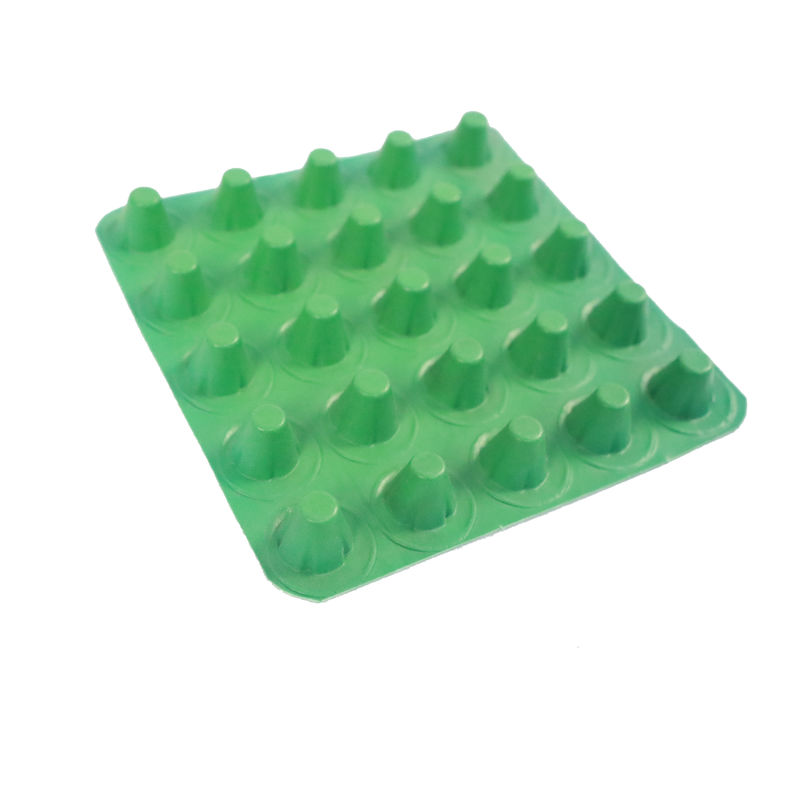

Roof Waterproof Membrane Greening Plastic Dimple Drainage Board Drain Sheet



Product introduction

This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water etc.




Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Feature

  • High Compressive strength
  • Eco-friendly, waterproof polypropylene material
  • Lightweight and easily transportable
  • Thermal regulation
  • Low cost
  • Quick and easy to install
